Shop MOLEX

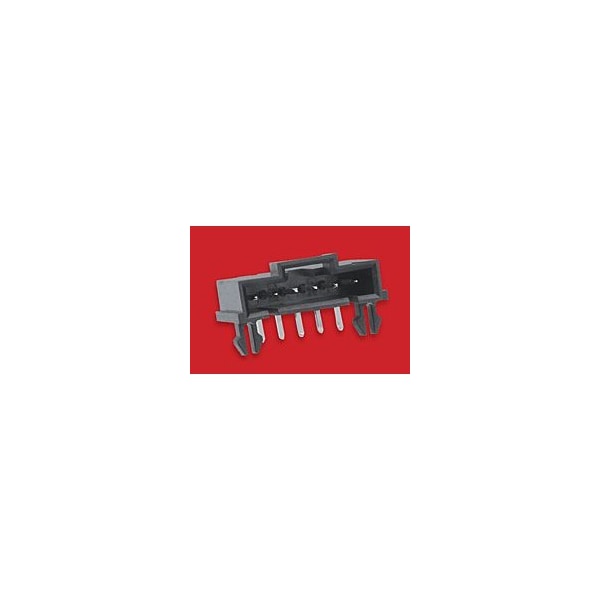

SL R/A Latch Hdr /Split Pg 15 SAu 9Ckt

  • Mfr # 70551-0043

  • Zoro # G7768193

product price:  $3.15
/ea
Sold in multiples of 25 for $78.75

Key Features

Termination Interface: Style
Through Hole
Temperature Range - Operating
-40° to +105°C
Material - Metal
Brass, Phosphor Bronze
Lock to Mating Part
Yes
Color - Resin
Black
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
70551-0043
Zoro #
G7768193
UPC #
-
Country of Origin
United States

Dimensions

PC Tail Length
3.30mm
PCB Thickness - Recommended
1.60mm

Details

Termination Interface: Style
Through Hole
Temperature Range - Operating
-40° to +105°C
Material - Metal
Brass, Phosphor Bronze
Lock to Mating Part
Yes
Color - Resin
Black
Material - Plating Termination
Tin
Pitch - Mating Interface
2.54mm
Material - Resin
High Temperature Thermoplastic
Plating min - Mating
0.381µm
CSA
LR19980
Polarized to Mating Part
Yes
Number of Rows
1
Circuits (maximum)
9
Voltage - Maximum
250V
Current - Maximum per Contact
3.0A
PCB Retention
Yes
Flammability
94V-0
Circuits (Loaded)
9
Plating min - Termination
1.905µm
Orientation
Right Angle
UL
E29179
PCB Locator
Yes
Shrouded
Fully
Durability (mating cycles max)
50
Material - Plating Mating
Gold
