Shop MOLEX

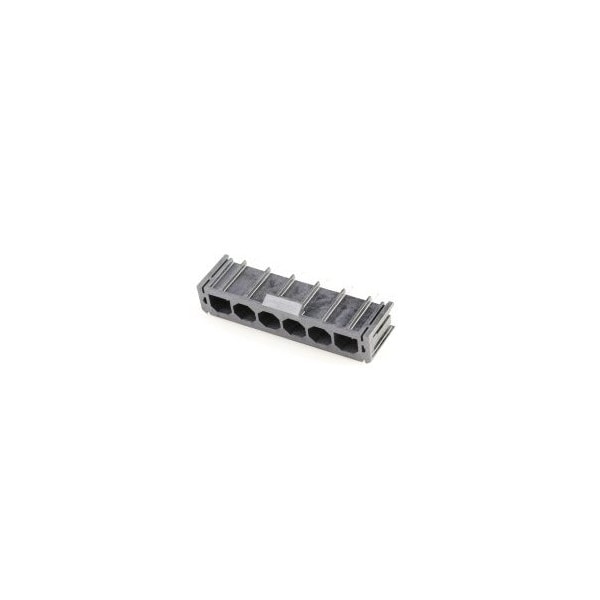

Super-Sabre R/A Hdr Assy 6ckt FgrPrf

  • Mfr # 172043-0601

  • Zoro # G2754522

product price:
$
5.75
/ea
Sold in multiples of 20 for $115.00

Key Features

Material - Metal
Copper
Polarized to Mating Part
Yes
Material - Plating Mating
Silver
CSA
LR19980
Plating min - Termination
0.025µm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
172043-0601
Zoro #
G2754522
UPC #
-
Country of Origin
Mexico
Material - Metal
Copper
Polarized to Mating Part
Yes
Material - Plating Mating
Silver
CSA
LR19980
Plating min - Termination
0.025µm
Termination Interface: Style
Through Hole
Circuits (Loaded)
6
Circuits (maximum)
6
Duration at Max. Process Temperature (seconds)
30
Color - Resin
Black
Pitch - Mating Interface
7.50mm
Plating min - Mating
0.025µm
Material - Resin
High Temperature Thermoplastic
Number of Rows
1
Process Temperature max. C
260
UL
E29179
Glow-Wire Capable
Yes
Current - Maximum per Contact
30.0A per blade
Orientation
Right Angle
Lock to Mating Part
Yes
Temperature Range - Operating
-40° to +125°C
Max. Cycles at Max. Process Temperature
3
Voltage - Maximum
600V AC (RMS)
Durability (mating cycles max)
25
Material - Plating Termination
Matte Tin, Nickel
Flammability
94V-0
Surface Mount Compatible (SMC)
Yes
