  11. Telecom And Datacom Connector, 40 Contact(S), Female, Right Angle, Press Fit Terminal, Locking,

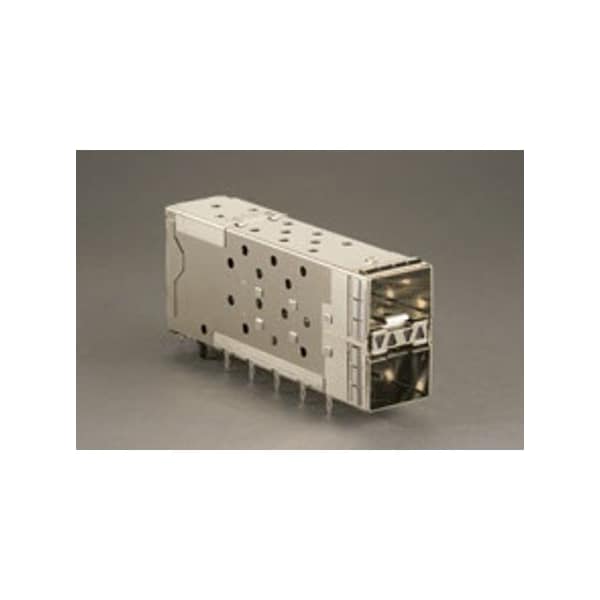

Molex Telecom And Datacom Connector, 40 Contact(S), Female, Right Angle, Press Fit Terminal, Locking, 760445001 - main

Telecom And Datacom Connector, 40 Contact(S), Female, Right Angle, Press Fit Terminal, Locking,

  • Mfr # 760445001

  • Zoro # G005951229

product price: $26.35
/ea
Sold in multiples of 4 for $105.40

Key Features

Connector Type
Female
Number of Contacts
40
Max. Temp.
85°C
Max. Voltage
120V AC/DC
Application
Module-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
760445001
Zoro #
G005951229
UPC #
-
Country of Origin
China

Dimensions

Contact Plating Thickness
0.762 µm
PCB Thickness - Recommended
1.57mm
PC Tail Length
2.07mm

Details

Connector Type
Female
Number of Contacts
40
Max. Temp.
85°C
Max. Voltage
120V AC/DC
Application
Module-to-Board
Series
76044
Standards
CSA Certified; UL E29179
Terminal Type
Through Hole - Compliant Pin
Hole Center to Center
0.8 mm
Shielded
Yes
Color
Black, Clear
Number of Ports
2
Material
High Temperature Thermoplastic, Polycarbonate
Current Rating
0.5 A
Contact Finish
Gold Plated
Number of Rows
2
Flammability Rating
UL 94V-0
Terminal Finish
Tin Plated
Shield Type
EMI Gasket
PCB Retention
Yes
Material - Plating Termination
Tin
Lock to Mating Part
Yes
PCB Locator
Yes
Keying to Mating Part
None
Voltage - Maximum
120V AC (RMS)/DC
Pitch - Mating Interface
0.80mm
Material - Metal
Brass, Phosphor Bronze
Flammability
94V-0
Material - Resin
High Temperature Thermoplastic, Polycarbonate
Product Name
SFP Plus,SFP+
CSA
LR19980
Material - Plating Mating
Gold
Grounding to Panel
None
Plating min - Mating
0.762µm
Component Type
Receptacle
Circuits Detail
40
Polarized to PCB
Yes
UL
E29179
Waterproof / Dustproof
No
Polarized to Mating Part
Yes
Orientation
Right Angle
Color - Resin
Black, Clear (Blue Tint)
Durability (mating cycles max)
100
Temperature Range - Operating
-40° to +85°C
Current - Maximum per Contact
0.5A

Description

Telecom And Datacom Connector, 40 Contact(S), Female, Right Angle, Press Fit Terminal, Locking, Receptacle
