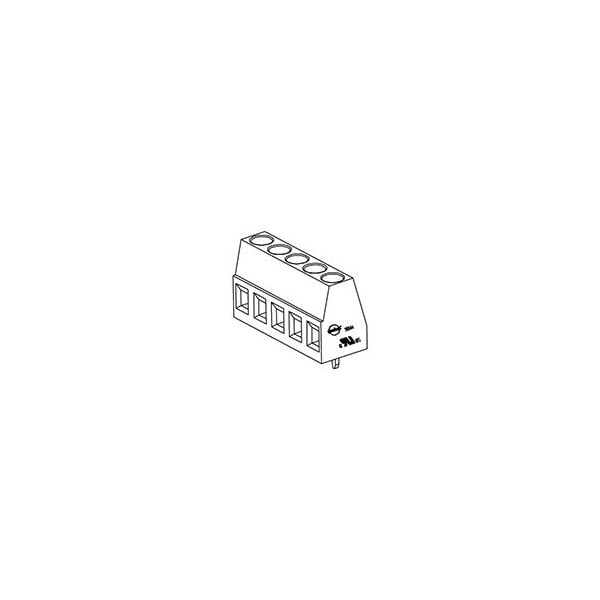

Terminal Block, 15 A, 300 V, 12 AWG
- Mfr # 395443011
- Zoro # G805798130
product price:Â
$
4.15
/ea
Sold in multiples of 960 for
$3,984.00
Key Features
Current
15.0 A
Maximum Voltage
300 V
For Minimum Wire Size
22 AWG
For Maximum Wire Size
12 AWG
Standards
UL E48521
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 395443011
- Zoro #
- G805798130
- UPC #
- -
- Country of Origin
- China
Dimensions
- For Minimum Wire Size
- 22 AWG
- For Maximum Wire Size
- 12 AWG
- PCB Thickness - Recommended
- 2.00mm
- PC Tail Length
- 3.00mm
Details
- Item
- Terminal Block
- Current
- 15.0 A
- Maximum Voltage
- 300 V
- Standards
- UL E48521
- Lock to Mating Part
- None
- Panel Mount
- No
- Temperature Range - Operating
- -40° to +105°C
- Process Temperature max. C
- 260
- Max. Cycles at Max. Process Temperature
- 135
- Circuits (Loaded)
- 11
- Number of Rows
- 1
- Pitch - Mating Interface
- 5.08mm
- Duration at Max. Process Temperature (seconds)
- 5
- Stackable
- No
- Entry Angle
- Horizontal
- Orientation
- Vertical
