  11. uUSB B Rec BotMt Flangeless TH 0.60

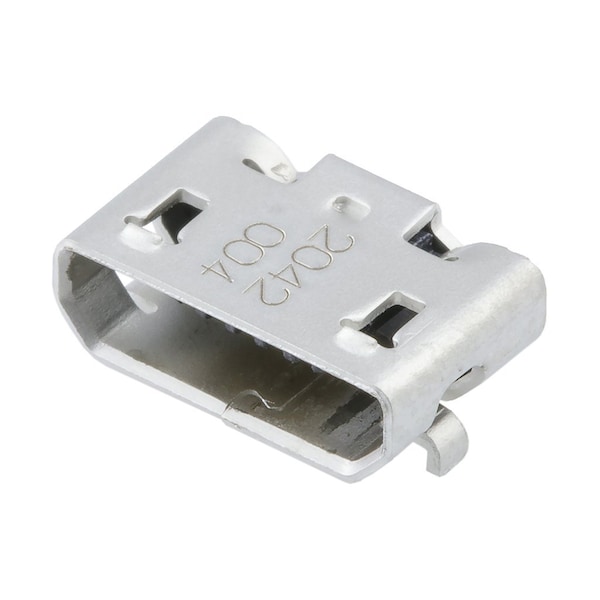

Molex uUSB B Rec BotMt Flangeless TH 0.60 105017-1001 - main

uUSB B Rec BotMt Flangeless TH 0.60

  • Mfr # 105017-1001

  • Zoro # G7922342

original price: $1.29
10% off
new price: $1.15
/ea
Sold in multiples of 2000 for $2,300.00

Key Features

Durability (mating cycles max)
10000
Pitch - Termination Interface
0.65mm
Duration at Max. Process Temperature (seconds)
3
Material - Metal
Copper Alloy
Grounding to Panel
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
105017-1001
Zoro #
G7922342
UPC #
-
Country of Origin
China

Details

Durability (mating cycles max)
10000
Pitch - Termination Interface
0.65mm
Duration at Max. Process Temperature (seconds)
3
Material - Metal
Copper Alloy
Grounding to Panel
Yes
Voltage - Maximum
30V AC (RMS)
Orientation
Right Angle
Current - Maximum per Contact
1.8A, 1.0A
Material - Resin
High Temperature Thermoplastic
Polarized to Mating Part
Yes
Max. Cycles at Max. Process Temperature
2
Number of Rows
1
Circuits (Loaded)
5
Flammability
94V-0
Process Temperature max. C
255
Temperature Range - Operating
-30° to +85°C
Material - Plating Mating
Gold
Circuits (maximum)
5
Shield Type
Full Shield
Surface Mount Compatible (SMC)
Yes
Ports
1
Pitch - Mating Interface
0.65mm
Gender
Female
Color - Resin
Black
Shielded
Yes
Termination Interface: Style
Surface Mount
UL
E107635
Keying to Mating Part
Yes
Material - Plating Termination
Gold
