Morrill

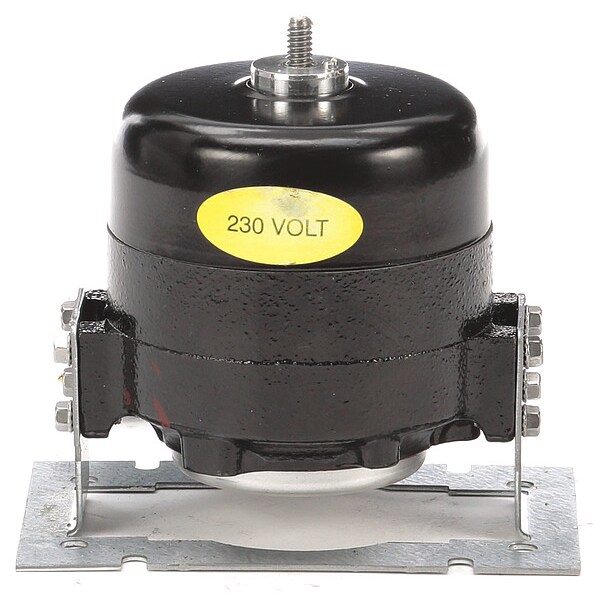

Unit Bearing Motor, ECM, 1/4 In. L, CCWLE (Discontinued)

Free Shipping & Returns
This Product is Discontinued
Shop for all Unit Bearing Motors

Key Features

  • Motor Sub Application Refrigerator/Freezer
  • Output Watts 38 W
  • HP 1/20
  • RPM Range 1,501-1,600
  • Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
See all product information

Product Information

Dimensions

Shaft Dia. 1/4 in
Body Dia. 3 7/16 in
Overall Length 4 9/16 in
Shaft Length 5/16 in
Length Less Shaft 4 1/4 in
Bolt Circle Dia. 2 13/16 in
Stud Size #8-36
Lead Length 15 in

Details

Motor Sub Application Refrigerator/Freezer
Output Watts 38 W
HP 1/20
RPM Range 1,501-1,600
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Phase Single
Voltage 230V AC
Motor Shaft Rotation CCWSE
Nameplate RPM 1,550
Frame Non-Standard
Hz 60 Hz
Motor Thermal Protection Electronic
Motor Service Factor 1
Frame Material Aluminum
Motor Design ECM
Ins. Class B
Ambient Temperature -40 to 55 Degrees C
Standards CSA, UL
Motor Mounting Position All Angle
Full Load Amps 0.45 A
Duty Continuous
Application Beverage Merchandisers and Vending Machines, Condenser Fans, Ice Machines, Walk-in Coolers and Freezers
Mounting Pattern (4) 0.147 in Dia Drilled Holes 5/8 x 1-1/8 in on Each Foot, (5) 0.15 in Dia Cored Holes on 2.813 in Dia Bolt Circle on Rear
Motor Enclosure Design Totally Enclosed Air-Over
Motor Shaft Design Threaded
Motor Application HVAC/R
Motor Frame Material Aluminum
Max. Ambient Temp. 55 Degrees C
Item ECM Unit Bearing Motor
Plug Type 2 Prong Lyall M-2-24
Motor Mounting Type Rear/Foot
Motor Bearings Unit
No. of Speeds 1
Includes Mounting Bracket
Usable @ 208V No
Features Electronically Commutated (ECM), Electronically Protected
Duty Cycle Continuous
Usable @ 200V No
Weight 4 lb
Mounting Stud Pattern 2 in x 4 in

Description

ECM Unit Bearing Motor, Single Phase, Motor Design ECM, 1/20 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 230V AC, 0.45 A Full Load Amps, Non-Standard Frame, Output Watts 38 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Electronic, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 55 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Foot, Motor Frame Material Aluminum
