Mosmatic

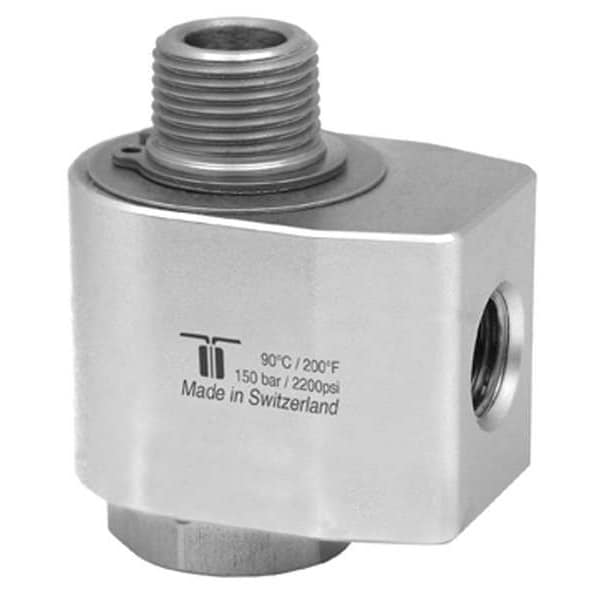

Rotary Union, WDG Swivel, NPTF xNPTM, 3/8In

product price: $94.75
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Size Inlet 3/8 in NPTF - Outlet 3/8 in NPTM
  • Rotation Manual Rotation
  • Flow Single
  • Max. Speed 30 RPM
  • Body Dia. 1.77 in
See all product information

Product Information

Dimensions

Size Inlet 3/8 in NPTF - Outlet 3/8 in NPTM
Body Dia. 1.77 in
Pipe Size (Fittings) 3/8"
Pipe Size - Pipe Fitting 3/8"
Stationary Port Thread Size 3/8 in
Body Diameter 1.77 in
Rotating Shaft Thread Size 3/8 in
Shaft Thread Length 15/32 in
Overall Length 1.77 in
Overall Width 1.26 in

Details

Item Rotary Union
Rotation Manual Rotation
Flow Single
Max. Speed 30 RPM
Standards ISO 9001
Max. Temp. 200 Degrees F
Connection NPTF x NPTM
Max. Pressure 2200 psi
Material of Construction Stainless steel
Type WDG 90 Degrees Swivel, O-Ring Seal
Pipe Fitting Material Stainless Steel
Fitting Material Finish Nickel-Plated
Internal Fitting Material Stainless Steel
Stationary Port Connection Type NPTF
Number of Passages 1
Maximum Operating Temperature 200 Degrees F
Fitting Material Brass
Internal Fitting Material Grade 304
Flow Direction Single-Flow
Bearing Type Slide Bearing
Maximum Speed 30 RPM
Thread Rotation Right Hand
Seal Material Nitrile Rubber
Rotating Shaft Connection Type NPTM

Description

Rotary Union, Fitting Material Brass, Internal Fitting Material Stainless Steel, Fitting Material Finish Nickel-Plated, Internal Fitting Material Grade 304, Fitting Type Elbow, Flow Direction Single-Flow, Maximum Operating Temperature 200 Degrees F, Maximum Speed 30 RPM, Minimum Operating Temperature Not Applicable, Number of Passages 1, Overall Length 1.77 in, Pipe Size Not Applicable, Rotating Shaft Connection Type NPTM, Rotating Shaft Thread Size 3/8 in, Seal Material Nitrile Rubber
