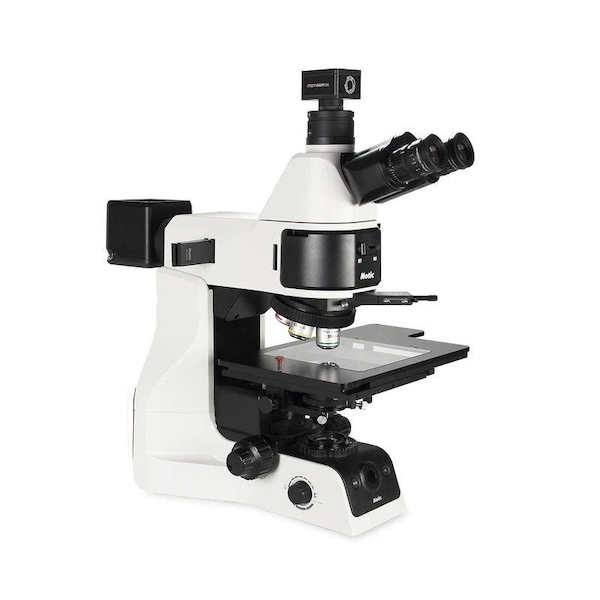

PA53MET-T Trinocular Compound Upright Microscope with Reflected & Transmitted Illumination

PA53MET - Advanced Metallurgical Microscope Product Description: The PA53MET is a premium metallurgical microscope engineered for advanced material analysis and industrial inspection. With superior reflected light performance and modular flexibility, it delivers high-resolution imaging for precise evaluation of metals and complex surfaces. Features: - Advanced reflected light illumination - High-resolution metallurgical optics - Modular system for customization - Precision focusing and stability - Designed for industrial environments Microscopy Applications: Ideal for metallography, semiconductor inspection, and materials science. The PA53MET enables detailed analysis of microstructures, coatings, and defects in research labs and industrial quality control. PA53MET-T - Reflected & Transmitted Illumination spec: - Scalable Infinity-Corrected Optical System (CCIS); - Trinocular erect image observation tube head (FN25); - Widefield (FN25) eyepiece 10X/25mm w/ adjustable diopter; - Reflected intermediate illumination system for BF observation; - Transmitted illumination system with LWD condenser; - 100W halogen lamp house; - Coded Quintuple (5) revolving nosepiece for BF w/ slot for DIC; - 4x4 inch right hand stage w/ metal stage plate (Stroke: 104 mm x 102 mm); - PA-25ND6 neutral density filter & PA-25LB LBD filter; - Plan S-APO 5X/0.15; WD=17.7mm; CG=0 - Plan S-APO 10X/0.30; WD=12mm; CG=0 - Plan S-APO 20X/0.50; WD=2.35mm; CG=0 - Plan S-APO 50X/0.80; WD=1mm; CG=0 - Integrated power supply for 12V/100W light adjustment, voltage indicator with IL and ECO functionality (110V/220V)
