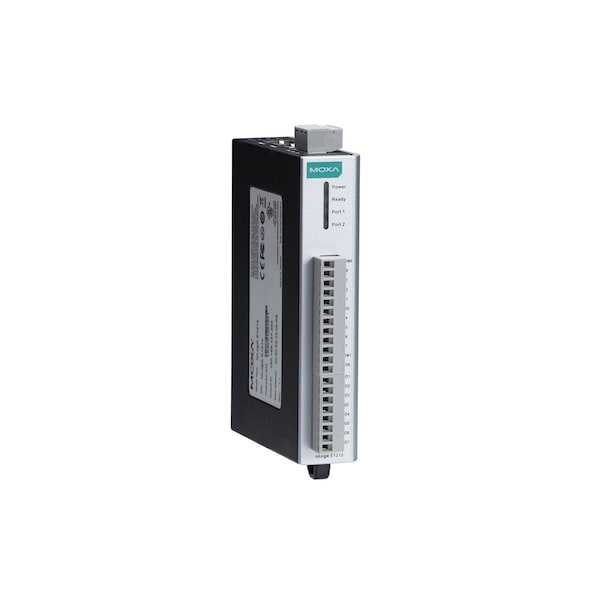

Remote Ethernet I/O, 16Di, 2Port Switch

DIN rail or wall

Wet Contact (NPN or PNP), Dry Contact

Up to 2000 m

UL 508

I/O cable max. 14 AWG

24 VDC nominal, 12 to 36 VDC

Software Configurable

3k VDC or 2k Vrms

110 mA @ 24 VDC

On: 10 to 30 VDC; Off: 0 to 3 VDC

-40 to 85°C (-40 to 185°F)

IEC 60068-2-27

16 channels

On: short to GND; Off: open

1.5 kV magnetic isolation

EN 55024, EN 61000-4-2, EN 61000-4-3; EN 61000-4-4, EN 61000-4-5, EN 61000-4-6; EN 61000-4-8, EN 61000-4-11

UL/cUL Class I Diision 2, ATEX Zone 2

5 to 95% (non-condensing)

EN 55022; EN 61000-3-2; EN 61000-3-3; FCC Part 15, Subpart B, Class A

8 points per COM

IEC 60068-2-6

Standard Models: -10 to 60°C (14 to 140°F); Wide Temp. Models: -40 to 75°C (-40 to 167°F)

250 Hz

Telcordia (Bellcore)

Modbus/TCP, TCP/IP, UDP, DHCP, BOOTP, HTTP

IEC 60068-2-32

2 switched 10/100 Mbps RJ45 ports

671,345 hrs
