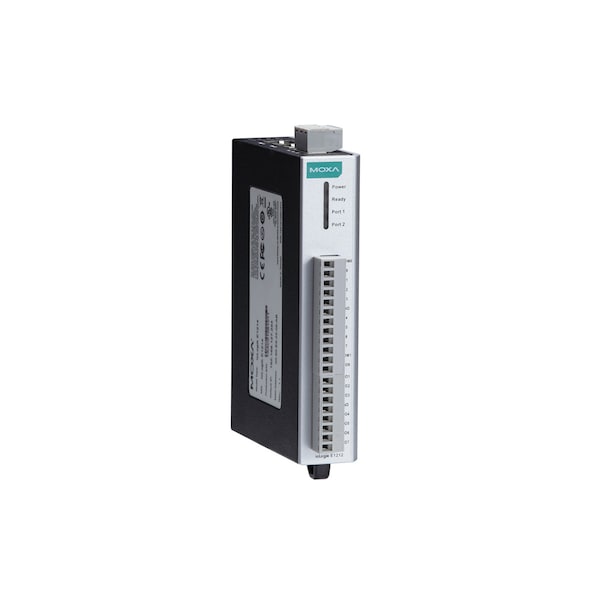

Remote Ethernet I/O, 8Ai, 2Port Switch

DIN rail or wall

UL 508

1.5 kV magnetic isolation

±0.1% FSR @ 25°C; ±0.3% FSR @ -10 and 60°C; ±0.5% FSR @ -40 and 75°C

UL/cUL Class I Diision 2, ATEX Zone 2

Voltage / Current

Modbus/TCP, TCP/IP, UDP, DHCP, BOOTP, HTTP

-40 to 85°C (-40 to 185°F)

Standard Models: -10 to 60°C (14 to 140°F); Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Telcordia (Bellcore)

EN 55022; EN 61000-3-2; EN 61000-3-3; FCC Part 15, Subpart B, Class A

16 bits

2 switched 10/100 Mbps RJ45 ports

474,053 hrs

5 to 95% (non-condensing)

Differential input

IEC 60068-2-27

EN 55024, EN 61000-4-2, EN 61000-4-3; EN 61000-4-4, EN 61000-4-5, EN 61000-4-6; EN 61000-4-8, EN 61000-4-11

I/O cable max. 14 AWG

IEC 60068-2-32

8 channels

Up to 2000 m

121 mA @ 24 VDC

0 to 10 VDC, 0 to 20 mA, 4 to 20 mA

120 ohms

10M ohms (min.)

24 VDC nominal, 12 to 36 VDC

3k VDC or 2k Vrms

IEC 60068-2-6

All channels: 12 samples/sec; Per channel: 1.5 samples/sec; Only one channel enabled: 12 samples/sec
