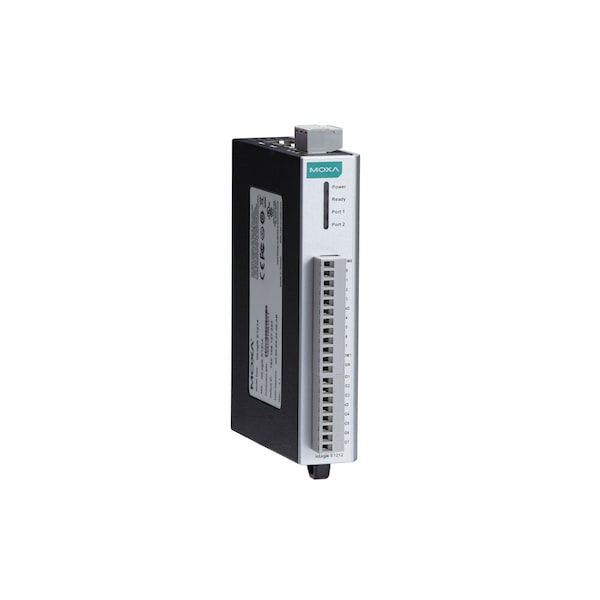

Remote Ethernet I/O, 8Di, 4Do And 4Dio, Source Type Do, 2Port

15 to 30 VDC (12 or 9 VDC configurable by jumper on the 4 DO channels)

DIN rail or wall

2 switched 10/100 Mbps RJ45 ports

EN 55022; EN 61000-3-2; EN 61000-3-3; FCC Part 15, Subpart B, Class A

Modbus/TCP, TCP/IP, UDP, DHCP, BOOTP, HTTP

24 VDC nominal, 12 to 36 VDC

130 mA typical @ 24 VDC

DI or event counter, DO or Pulse Output

5 to 95% (non-condensing)

EN 55024, EN 61000-4-2, EN 61000-4-3; EN 61000-4-4, EN 61000-4-5, EN 61000-4-6; EN 61000-4-8, EN 61000-4-11

1.5 A per channel

UL/cUL Class I Diision 2, ATEX Zone 2

NPN, PNP, and dry contact

-40 to 85°C (-40 to 185°F)

250 Hz, power off storage

Up to 2000 m

1.5 kV magnetic isolation

41 VDC

I/O cable max. 14 AWG

On: 10 to 30 VDC; Off: 0 to 3 VDC

3k VDC or 2k Vrms

On: short to GND; Off: open

12 points per COM

IEC 60068-2-6

4 channels

175°C (typical), 150°C (min.)

Source

4 channels

8 channels

1.5 A per channel @ 25°C

UL 508

IEC 60068-2-32

500 mA per channel

IEC 60068-2-27
