  11. Remote Ethernet I/O, 8Di/8Dio, 2Port Switch, -40 To 75 DegreeC

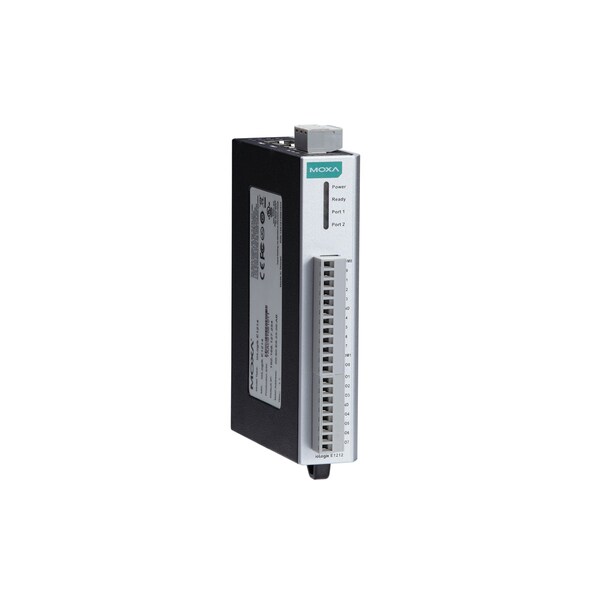

Moxa Remote Ethernet I/O, 8Di/8Dio, 2Port Switch, -40 To 75 DegreeC ioLogik E1212-T - main

Remote Ethernet I/O, 8Di/8Dio, 2Port Switch, -40 To 75 DegreeC

  • Mfr # ioLogik E1212-T

  • Zoro # G4578186

product price: $467.99
/ea
Free Shipping & Returns

Key Features

Mounting
DIN rail or wall
Pulse Output Frequency
500 Hz
Counter Frequency
250 Hz
Time
561,930 hrs
Storage temperature
-40 to 85°C (-40 to 185°F)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ioLogik E1212-T
Zoro #
G4578186
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Dimensions
27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in)

Details

Mounting
DIN rail or wall
Pulse Output Frequency
500 Hz
Counter Frequency
250 Hz
Time
561,930 hrs
Storage temperature
-40 to 85°C (-40 to 185°F)
Current Rating
200 mA per channel
Operating temperature
Standard Models: -10 to 60°C (14 to 140°F); Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Digital Inputs
8 channels
Power Input
24 VDC nominal, 12 to 36 VDC
Freefall
IEC 60068-2-32
Protection
1.5 kV magnetic isolation
Power Consumption
155 mA @ 24 VDC
Wet Contact (DI to COM)
On: 10 to 30 VDC; Off: 0 to 3 VDC
Hazardous Location
UL/cUL Class I Diision 2, ATEX Zone 2
Sensor Type
Wet Contact (NPN or PNP), Dry Contact
Shock
IEC 60068-2-27
Configurable DI/Os
8 channels
Ambient Relative Humidity
5 to 95% (non-condensing)
Altitude
Up to 2000 m
Dry Contact
On: short to GND; Off: open
I/O Mode
DO or Pulse Output, DI or Event Counter
Type
Sink
Digital Filtering Time Interval
Software Configurable
Isolation
3k VDC or 2k Vrms
Wiring
I/O cable max. 14 AWG
Over-voltage Protection
45 VDC
EMI
EN 55022; EN 61000-3-2; EN 61000-3-3; FCC Part 15, Subpart B, Class A
Vibration
IEC 60068-2-6
Protocols
Modbus/TCP, TCP/IP, UDP, DHCP, BOOTP, HTTP
Ethernet
2 switched 10/100 Mbps RJ45 ports
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3; EN 61000-4-4, EN 61000-4-5, EN 61000-4-6; EN 61000-4-8, EN 61000-4-11
Safety
UL 508
Over-temperature Shutdown
175°C (typical), 150°C (min.)
Over-current Protection
2.6 A (4 channels @ 650 mA)
Common Type
8 points per COM
Database
Telcordia (Bellcore)

Description

Remote Ethernet I/O, 8DI/8DIO, 2-port Switch, -40 to 75°C
