6430 6 Series Ignition Control Module

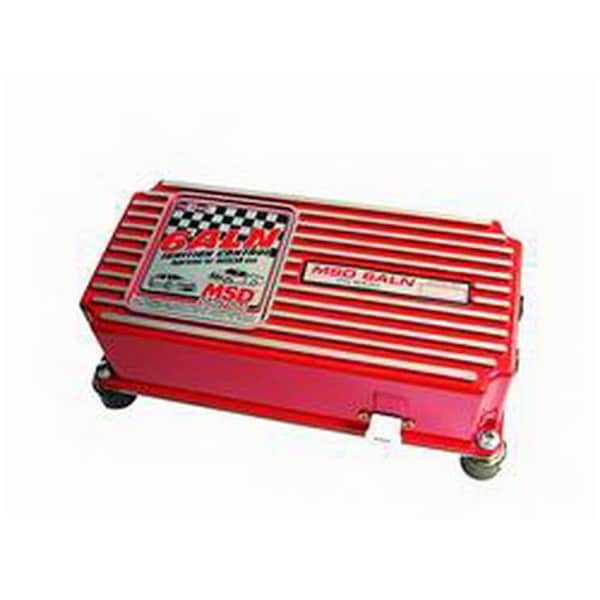

The MSD 6TN and MSD 6ALN were designed with NASCAR racing in mind. In fact, both of the capacitive discharge high power ignitions are NASCAR approved! The "N" series ignitions feature the mandatory 6 pin weather tight connector to meet NASCAR's ignition wiring rule, 20-6.1. This special connector provides a tight, positive locking connection with individual seals to keep dirt and moisture away from each connection. All of the MSD's primary wiring meets MIL-86A specifications with special tinned conductors for superior crimps. Inside the strong cast aluminum housing, the multiple sparking CD circuits are encased in a clear two part silicone elastomer for the ultimate in vibration protection. A special clear base plate is also installed for easy tech inspection. The 6TN is equipped with a special 4 pin connector that plugs directly into an MSD soft touch rev control, while the 6ALN has a built-in rev control. Features Multiple Spark, Capacitive Discharge Ignition Control. Designed For Circle Track Racing With NASCAR Mandated Connectors And Clear Epoxy Potting Compound For Vibration Protection. Circuit Board Is Encased In A Clear Two Part Silicone Elastomer. Built-In Soft Touch Rev Control Is Adjustable With RPM Modules. Multiple Sparks For 20 Degree Of Crankshaft Rotation. Works On 12 To 18 Volt Electrical System. Programmable For 4, 6, Or 8 Cylinders By Cutting Red/Blue Wire Loops. Color - Red. Circuitry - Analog. Spark Output ( Millijoules) - 110 Millijoules. Maximum Operating Voltage - 18 Volt. Minimum Operating Voltage - 12 Volt. Output - Capacitive Discharge. CD Voltage Output To Coil ( V) - 470 Volt. REV Limiter - Yes.
