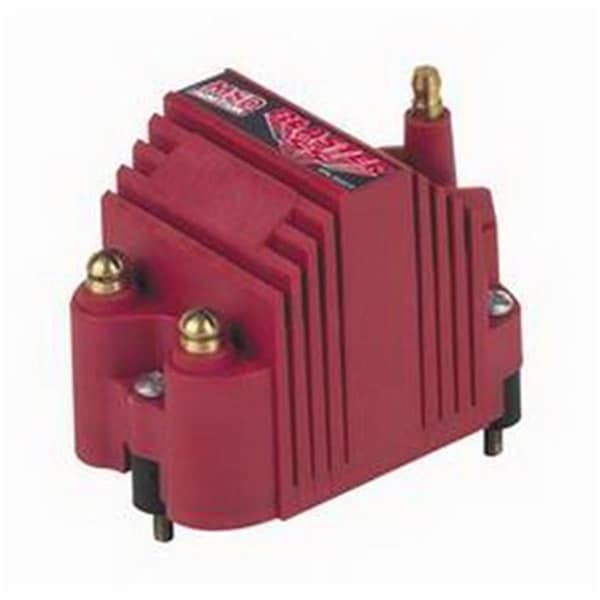

8207 Blaster Ss Ignition Coil

Don't let the compact size of the blaster SS Coil fool you, because it is packed with performance! The efficient E-core windings are designed to produce high amounts of current without sacrificing the voltage output. In fact, when used with an MSD 6 series ignition, the blaster SS produces 300 Milli Ampere with a maximum voltage output of 40,000 Volts! The secondary windings are wound on a segmented bobbin which reduces the chance of voltage breakdown between the primary and secondary windings. For more protection, these windings are encased in a polyurethane compound for complete protection against vibration. The blaster SS features brass terminals and a sturdy Rynite housing. It is supplied with a 90 Degree boot, terminal and vibration mounts. A great addition to CD ignitions and some stock applications. Features Improved Output Coil For Electronic Ignitions, And MSD Ignitions. Efficient Winding Design And Assembly Creates A Compact Housing. Primary And Secondary Windings Are Encased In Ciba Polyurethane For Vibration Protection. 70:1 Turns Ratio And Lower Primary Resistance Produce High Voltage Output. DuPont Rynite Housing With A Tall Tower And Brass Primary Terminals. Coil Style - Single Tower. Primary Resistance - 0.355 Ohms. Secondary Resistance - 4.4K Ohms. Maximum Voltage - 40000 Volts. Color - Red.
