Multifan

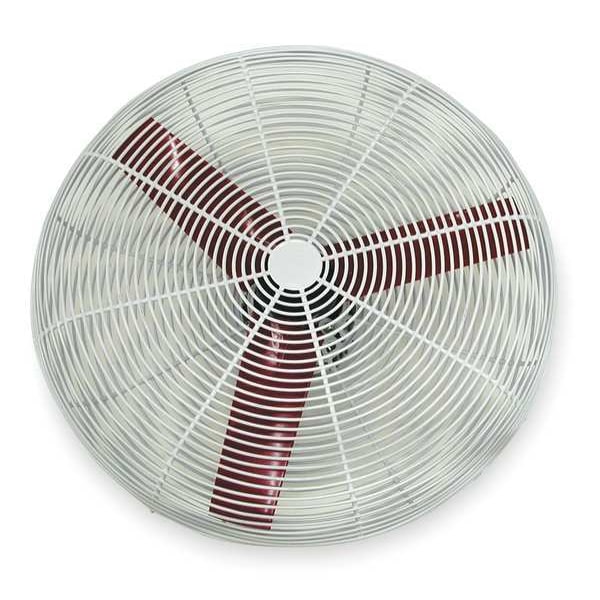

Corr Res Air Circ, 24 In, 8000 cfm, 115V

original price: $794.99
8% off
new price: $730.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 115V AC
  • Standards OSHA Compliant Guards, UL Recognized Motor
  • Guard Material Steel
  • Environmental Applications Industrial
  • Fan Mounting Location Ceiling, Wall
See all product information

Product Information

Dimensions

Cord Length 10 ft.
Shaft Dia. 9/16 in
Width 27 in
Outside Dia. 27"
Max. Depth 14"
Height 27 in
Blade Dia. 24"
Fan Cord Length 10 ft
Blade Diameter 24 in
Depth 14 in

Details

Item Corrosion-Resistant Industrial Fan
Voltage 115V AC
Standards OSHA Compliant Guards, UL Recognized Motor
Guard Material Steel
Environmental Applications Industrial
Fan Mounting Location Ceiling, Wall
Fan Accessory Style Corrosion Resistant
Bearing Type Sealed Ball
Assembled Yes
Fan Style Corrosion Resistant
Blade Material Polypropylene
Max. Ambient Temp. 104 Degrees F
Requires Mounting Device and Adjustable Speed Control
Hz 60 Hz
CFM High 8000
Mobile/Stationary Stationary
Operating Amps 3.8
Phase 1
Number of Blades 3
Sound Level 55 dBA
Includes Mounting Yoke
Speeds 1
Motor RPM 1750
Thermal Protection Auto
Application Spot Cooling
Housing Material Steel
Motor Enclosure Totally Enclosed Air Over
Oscillating No
Motor Insulation Class F
Wire Guard Finish Plastic Coated White
Oscillating / Non-Oscillating Non-Oscillating
Motor Type Permanent Split Capacitor
Motor HP 1/3 hp
Drive Type Direct Drive
Watts 456
Number of Speeds 1
Oscillation Non-Oscillating
Air Flow 8,000 cfm

Description

Corrosion-Resistant Industrial Fan, Blade Dia. 24 in, Stationary, Non-Oscillating, 1 Speeds, Voltage 115V AC, 1 Phase, CFM High 8000, Motor HP 1/3 hp, Motor RPM 1750, Operating Amps 3.8, Fan Mounting Location Ceiling, Wall, Fan Accessory Style Corrosion Resistant, Sound Level 55 dBA, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Watts 456, Motor Type Permanent Split Capacitor, Drive Type Direct Drive, Outside Dia. 27 In., Height 27 in, Width 27 in, Max. Depth 14 In., Cord Length 10 ft.
