  11. Corr Res Air Circ, 28 In, 10,000 cfm, 115V

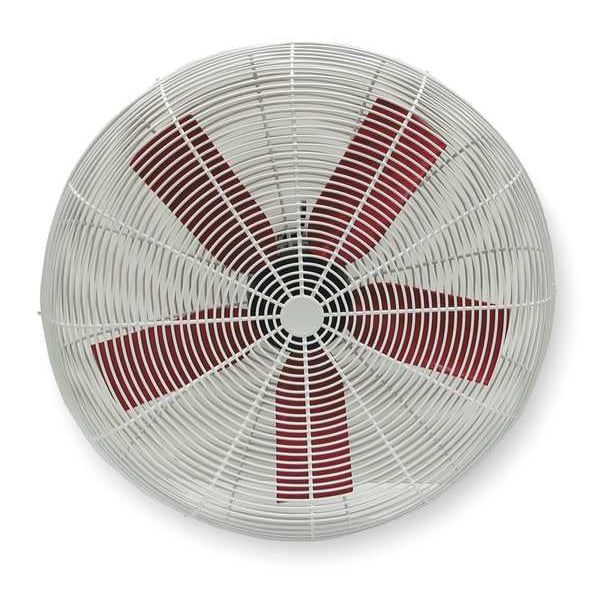

Multifan Corr Res Air Circ, 28 In, 10,000 cfm, 115V FXSTIR30-2/120 - main

Corr Res Air Circ, 28 In, 10,000 cfm, 115V

  • Mfr # FXSTIR30-2/120

  • Zoro # G3500271

product price: $814.99
/ea
Item requires special delivery charges. A $50.00 per item surcharge will be applied.

Key Features

Voltage
115V AC
Includes
Mounting Yoke
Wire Guard Finish
Plastic Coated White
Height
33 in
Motor RPM
1000
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FXSTIR30-2/120
Zoro #
G3500271
UPC #
-
Country of Origin
Netherlands

Dimensions

Height
33 in
Outside Dia.
33"
Max. Depth
19-1/2"
Blade Dia.
30"
Shaft Dia.
3/4 in
Width
33 in
Cord Length
10 ft.
Blade Diameter
30 in
Fan Cord Length
10 ft
Depth
19 1/2 in

Details

Item
Corrosion-Resistant Industrial Fan
Voltage
115V AC
Includes
Mounting Yoke
Wire Guard Finish
Plastic Coated White
Motor RPM
1000
Thermal Protection
Auto
Environmental Applications
Industrial
Drive Type
Direct Drive
Motor Insulation
Class F
Sound Level
55 dBA
Assembled
Yes
Phase
1
Max. Ambient Temp.
104 Degrees F
Operating Amps
6.7
Standards
UL Recognized Motor
Fan Mounting Location
Fan Head Only
Hz
60 Hz
Application
Spot Cooling
Mobile/Stationary
Stationary
Watts
804
Bearing Type
Sealed Ball
Motor Type
Permanent Split Capacitor
Oscillating / Non-Oscillating
Non-Oscillating
Fan Style
Corrosion Resistant
Number of Blades
5
Motor Enclosure
Totally Enclosed Air Over
CFM High
10,000
Speeds
1
Motor HP
1/2 hp
Fan Accessory Style
Corrosion Resistant
Guard Material
Steel
Blade Material
Polypropylene
Housing Material
Steel
Requires
Mounting Device and Adjustable Speed Control
Oscillating
No
Number of Speeds
1
Air Flow
10,000 cfm
Assembly Required
No
Amps
6.7
Oscillation
Non-Oscillating
Wheeled Base
Stationary
RPM
1000
Fan Housing Material
Steel

Description

Crrsion Rsstnt Indstrl Fan,30" Blde Dia.
