Shop MURRELEKTRONIK

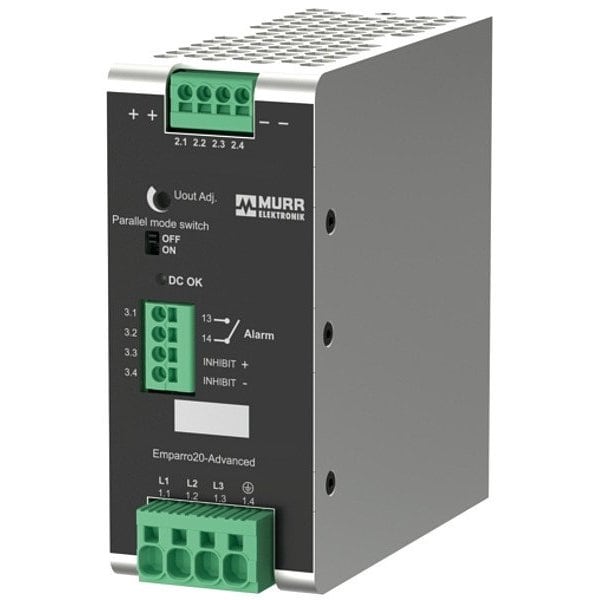

Dc Power Supply

  • Mfr # 9000-17332-1221110

  • Zoro # G922823999

product price:
$
449.99
/ea
Free Shipping & Returns

Key Features

Series
Emparro20
Output Voltage - Nominal
24 V DC
Current - Output
10.6 A
Output Voltage - Minimum
22.5 V DC
Output Noise - Maximum
40 mV
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9000-17332-1221110
Zoro #
G922823999
UPC #
-
Country of Origin
Malaysia

Dimensions

Overall Width
55 mm
Overall Depth
138.2 mm
Wire Size - Minimum
24 AWG
Overall Height
129 mm
Wire Size - Maximum
8 AWG

Details

Series
Emparro20
Output Voltage - Nominal
24 V DC
Current - Output
10.6 A
Output Voltage - Minimum
22.5 V DC
Output Noise - Maximum
40 mV
Hold Up Time - Minimum
20 msec
Output Voltage - Maximum
29 V DC
Output Power - Rated
240 W
Special Features
Overload Protection, Overtemperature Protection, Short Circuit Protection
Status Indicator
Green LED
Mean Time Between Failures (MTBF)
2,200,000 hr
Mounting
DIN Rail
Phase
Three
Input Frequency - Nominal
50/60 Hz
Item
DC Power Supply
Input Voltage
342 to 575V AC, 450.5 to 810V DC
Start Up Time - Maximum
3 sec
Housing Material
Aluminum
Operating Temperature - Minimum
-25 Degrees C
Standards
CE, CE 2014/30/EU, cULus Listed, EMC IEC/EN 61000-6-2, IEC/EN 61000-6-3 + A1 (2011)/AC, Reach, Reach-SVHC, RoHS 25, SEMI F47, UKCA, UL, cUL, WEEE
IP Rating
IP20
Wire Connection Type
Spring Clamp Terminals
Current - Inrush
25 A
Power Supply Style
Switching
Operating Temperature - Maximum
70 Degrees C

Description

DC Power Supply, Input Voltage 342 to 575V AC, 450.5 to 810V DC, Mounting DIN Rail, Series Emparro20, IP Rating IP20, Status Indicator Green LED, Standards CE, CE 2014/30/EU, cULus Listed, EMC IEC/EN 61000-6-2, IEC/EN 61000-6-3 + A1 (2011)/AC, Reach, Reach-SVHC, RoHS 25, SEMI F47, UKCA, UL, cUL, WEEE
