Shop MURRELEKTRONIK

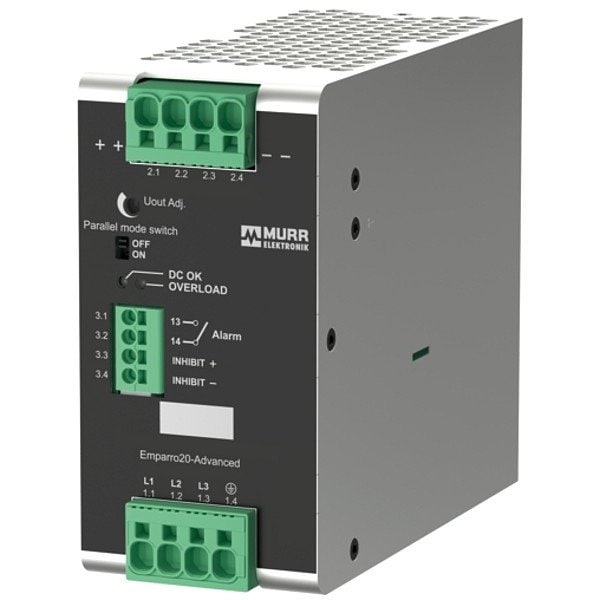

Dc Power Supply

  • Mfr # 9000-17332-1421110

  • Zoro # G122823355

product price:
$
525.99
/ea
Free Shipping & Returns

Key Features

Overall Width
65 mm
Wire Size - Maximum
8 AWG
Mean Time Between Failures (MTBF)
1,900,000 hr
Overall Depth
159.3 mm
Wire Size - Minimum
24 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9000-17332-1421110
Zoro #
G122823355
UPC #
-
Country of Origin
Malaysia

Dimensions

Overall Width
65 mm
Wire Size - Maximum
8 AWG
Overall Depth
159.3 mm
Wire Size - Minimum
24 AWG
Overall Height
135.7 mm

Details

Mean Time Between Failures (MTBF)
1,900,000 hr
Item
DC Power Supply
Output Voltage - Minimum
22.5 V DC
Phase
Three
Standards
CE, CE 2014/30/EU, cULus Listed, EMC IEC/EN 61000-6-2, IEC/EN 61000-6-3 + A1 (2011)/AC, Reach, Reach-SVHC, RoHS 25, SEMI F47, UKCA, UL, cUL, WEEE
Start Up Time - Maximum
1 sec
Housing Material
Aluminum
IP Rating
IP20
Series
Emparro20
Special Features
Overload Protection, Overtemperature Protection, Short Circuit Protection
Power Supply Style
Switching
Input Frequency - Nominal
50/60 Hz
Current - Output
20 A
Operating Temperature - Maximum
70 Degrees C
Output Noise - Maximum
70 mV
Hold Up Time - Minimum
25 msec
Operating Temperature - Minimum
-25 Degrees C
Wire Connection Type
Spring Clamp Terminals
Status Indicator
Green LED
Input Voltage
342 to 575V AC, 450.5 to 810V DC
Output Voltage - Maximum
29 V DC
Mounting
DIN Rail
Current - Inrush
17 A
Output Voltage - Nominal
24 V DC
Output Power - Rated
480 W

Description

DC Power Supply, Input Voltage 342 to 575V AC, 450.5 to 810V DC, Mounting DIN Rail, Series Emparro20, IP Rating IP20, Status Indicator Green LED, Standards CE, CE 2014/30/EU, cULus Listed, EMC IEC/EN 61000-6-2, IEC/EN 61000-6-3 + A1 (2011)/AC, Reach, Reach-SVHC, RoHS 25, SEMI F47, UKCA, UL, cUL, WEEE
