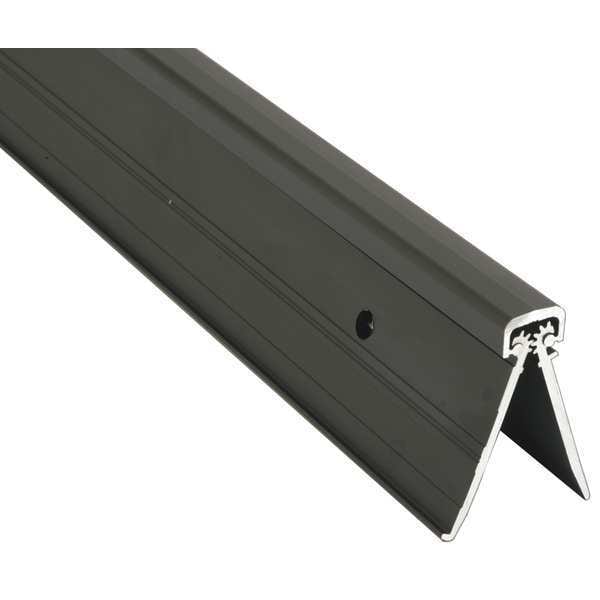

Piano Hinge, Aluminum Alloy, Concealed Mounting, 1 15/16 in Leaf W x 83 in Leaf H
Mfr # HD2400DKB-83
Zoro # G7306419
product price:Â
$
190.99
/ea
Free Shipping & Returns
Key Features
Material
Aluminum Alloy
Mounting
Concealed
Load Capacity
600 lb
Range of Motion
180 Degrees
Ligature Resistant
No
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- HD2400DKB-83
- Zoro #
- G7306419
- UPC #
- -
- Country of Origin
- United States
- Item
- Piano Hinge
- Material
- Aluminum Alloy
- Mounting
- Concealed
- Load Capacity
- 600 lb
- Range of Motion
- 180 Degrees
- Ligature Resistant
- No
- Finish
- Dark Bronze Anodized
- Holes
- With
- Holes per Leaf
- 19
- Hole Spacing
- Varies
- Hardware
- Included
- Standards
- ANSI/BHMA A156.26 Grade 1
- Orientation
- Non Handed
- Features
- Proprietary Teflon Infused Self-Lubricating Bearings, Intermeshing Gears
- UL Fire Rating
- UL10C
- Hand Orientation
- Non-Handed
- Green Environmental Attribute
- Applicable to LEED Criteria
- Green Certification or Other Recognition
- Environmental Transparency Through EPD (Environmental Product Declaration), Health Product Declaration Collaborative
- Includes Hardware
- Hardware Included
- Number of Holes per Leaf
- 19
- Resistance Properties
- Wear-Resistant
- Fire Rating
- 90 min
- Range of Motion - Maximum
- 180 Degrees
- ANSI/BHMA Finish
- Oxidized Satin Bronze-Plated, Oil Rubbed
Description
Piano Hinge, Ligature Resistant No, Aluminum Alloy Material, 180 Degrees Range of Motion, Dark Bronze Finish, With Holes, 600 lb Load Capacity, Non Handed Orientation, 11/16 in Overall Knuckle Height, 83 in Door Leaf Height, 83 in Frame Leaf Height, 1 15/16 in Door Leaf Width, 1 15/16 in Frame Leaf Width, 0.125 in Door Leaf Thickness, 0.125 in Frame Leaf Thickness, 1-3/4 in Required Door Thickness, Included Hardware, Varies Hole Spacing, 19 Holes per Leaf, Concealed Mounting
