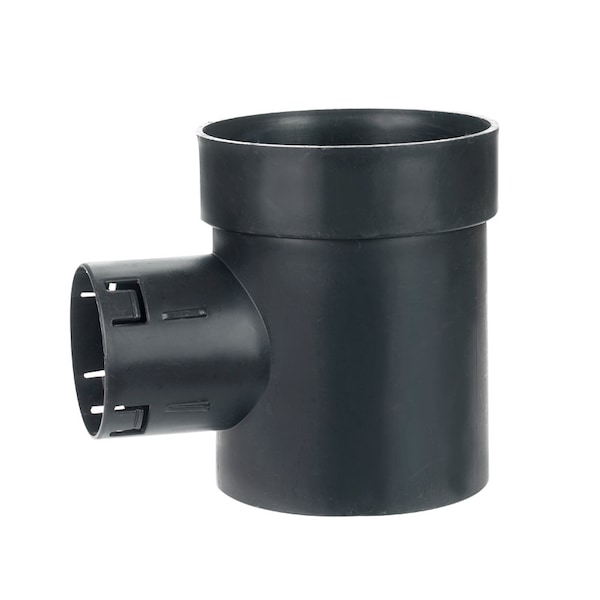

NDS Spee-D 6.5 in. W X 7.8 in. D Round Catch Basin

Does rainfall leave a flooded, mucky mess on your lawn? When stormwater can't properly drain, it can lead to a bigger problem-from soil erosion to seeping into your home's foundation-and result in costly damage. Here's how to fix it. Capture stormwater with the one-outlet Spee-D Catch Basin and direct it away to drain pipe. The stormwater catch basin used with a grate (sold separately) collects water from flood-prone areas such as lawns, landscaped areas, patios, and walkways. As part of a complete drainage system, the catch basin drain directs water to drain pipes, which carry the water to a discharge point downstream such as a pop-up emitter, or to percolate into the ground with a dry well or infiltration trench. Use the one-outlet catch basin alone or start a series of connected basins positioned downstream. Basin outlet connects to 3 in. & 4 in. single-wall corrugated, sewer and drain, triple-wall pipe, & 4 in. Sch. 40 pipe for a soil-tight fit. Made of polystyrene treated with UV inhibitors. Easy access to the sump area makes the basin easy to clean. The NDS catch basin outlet has a 68 GPM flow capacity. Load rating based on type of grate installed.

• • Used with plastic, brass or cast iron grates
• • Fits 4 in. SCH 40 pipe and 3 in. and 4 in. sewer and drain pipe, corrugated pipe or triple-wall pipe
• • Locking outlet for corrugated pipe
• • Compact size for easy installation
• • Sump area collects debris to prevent clogging
• • Use with grates or pop-up emitters
