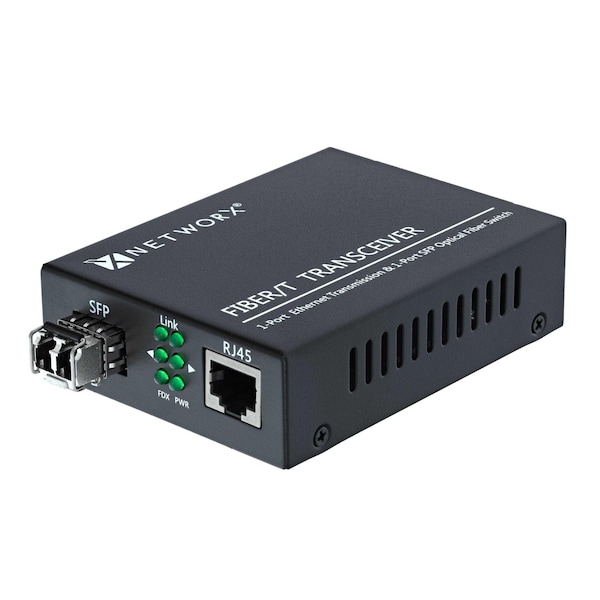

Gigabit Fiber Media Converter - 1000Base-LX, LC Multimode, 550m, 1310nm
Mfr # FT-1000MM-LC
Zoro # G514914142
Key Features
Specifications
Product Information
Details
Description
The Media Converter is a high-performance device designed to convert data signals between 10/100/1000Base-T and 1000Base-LX fast Ethernet networks. Compliant with IEEE 802.3z and IEEE 802.3AB standards, this versatile converter supports both 10/100/1000Base-T and 1000Base-LX applications, enabling data transmission up to 550 meters over multimode fiber.Equipped with two fiber optic connector ports TX and RX and one RJ-45 jack, the converter features six LED indicators for easy monitoring of power, UTP Link, UTP Activity, Fiber Link, Fiber Activity, Full duplex, and data rates. It automatically configures for Full or Half Duplex operation, ensuring seamless integration into various network environments.This compact and cost-effective converter offers low power dissipation, high reliability, and stable performance. It can be used as a standalone device or integrated into a rack-mount chassis, accommodating up to 16 units powered by a single internal power supply.Key Features:- Data Rate: 10/100/1000 Mbps with Auto-Negotiation- UTP Mode: Half or Full Duplex- Optical Wavelength: 1310nm- Fiber Type: Multi Mode 50/125, 62.5/125 micron- Connectors: One UTP RJ45, Two LC Fiber- Max Distance: 550m 50/125 fiber, 220m 62.5/125 fiber- Power Supply: External AC-DC Power Adapter US Standard- Dimensions: 95mm x 71mm x 26mm- Optical Output Power: -10 to -4 dBm- Receiving Sensitivity: -17 dBm- Saturability: greater than or equal to -3 dBmThe Media Converter's versatility and robust performance make it an ideal solution for businesses looking to bridge the gap between copper and fiber optic networks, ensuring efficient and reliable data transmission across various network infrastructures.
- •Gigabit Conversion: Translates Ethernet signals to fiber for fast, reliable data transfer.
- •Multimode Fiber Support: Works with 1000Base-LX multimode fiber for transmission up to 550 meters.
- •Dual Wavelength Compatibility: Operates with 1300/1310nm wavelengths for enhanced performance.
- •Seamless UTP to Fiber Transition: Effortlessly connects UTP to fiber networks.
- •Compact Design: Easy to integrate into existing network setups without taking up much space.
