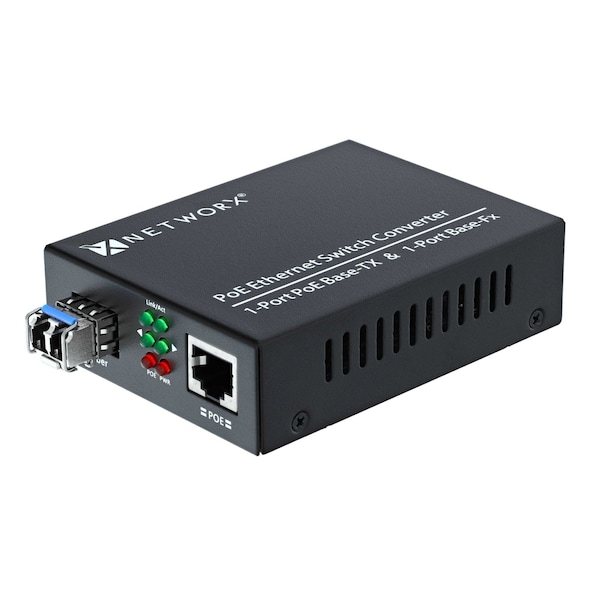

Gigabit Fiber Media Converter - 1000Base-SX, LC Multimode, 550m, 850nm, PoE
Mfr # FT-1000MMPOE-LC
Zoro # G914914148
Key Features
Specifications
Details
- MFR #
- FT-1000MMPOE-LC
- Zoro #
- G914914148
- UPC #
- -
- Country of Origin
- China
- Item
- Fiber Optic Media Converter
- Color
- Gray
Description
Networx Fiber Media Converter - PSE Power Sourcing EquipmentThis high-performance Networx Fiber Media Converter functions as Power Sourcing Equipment PSE, combining data transfer over fiber links and power delivery to Powered Devices PD via CAT5e/CAT6 UTP cables max 100 meters.Compliant with IEEE 802.3z and IEEE 802.3AB standards, this converter is designed to seamlessly convert data signals between 10/100/1000Base-T and 1000Base-SX fast Ethernet. It supports both 10/100/1000Base-T and 1000Base-SX applications, enabling data transmission up to 550 meters over multimode fiber.The converter features two fiber optic connector ports TX and RX, one RJ-45 jack, and an external power supply receptacle. Six LED indicators allow easy diagnosis and monitoring of power, UTP Link/Activity, Fiber Link/Activity, Full duplex, and data rates. It automatically configures for Full or Half Duplex operation.Key Features:- Data Rate: 10/100/1000 Mbps with Auto-Negotiation- IEEE802.3at / IEEE802.3af PoE PSE compatible- Power Output: PoE 48V DC, max 40 watts- Over-Current Protection- UTP Mode: Half or Full Duplex- Optical wavelength: 850nm- Fiber Type: Multi Mode 50/125, 62.5/125 micron- Connectors: One UTP RJ45, Two LC Fiber- Max Distance: 550m 50/125, 220m 62.5/125- Power Supply: External AC-DC Power Adapter, US Standard- Size: 95mm x 71mm x 26mm- Optical Output Power: -10 to -4 dBm- Receiving Sensitivity: -17 dBm- Saturability: greater than or equal to -3 dBmThis versatile media converter is ideal for network applications requiring both data conversion and power delivery, offering a comprehensive solution for modern networking needs.
- •PoE Capability: Combines data and power transmission over a single Ethernet cable.
- •Multimode Fiber: Supports 1000Base-SX over multimode fiber for distances up to 550 meters.
- •850nm Wavelength: Operates at 850nm for efficient multimode fiber transmission.
- •Gigabit Ethernet: Converts between 10/100/1000Base-T and 1000Base-SX for high-speed networking.
- •Compact Design: Ideal for standalone or rack-mounted applications in space-constrained environments.
