  9. Metering Pump, 1/2 HP, 230/460VAC, 78 gph

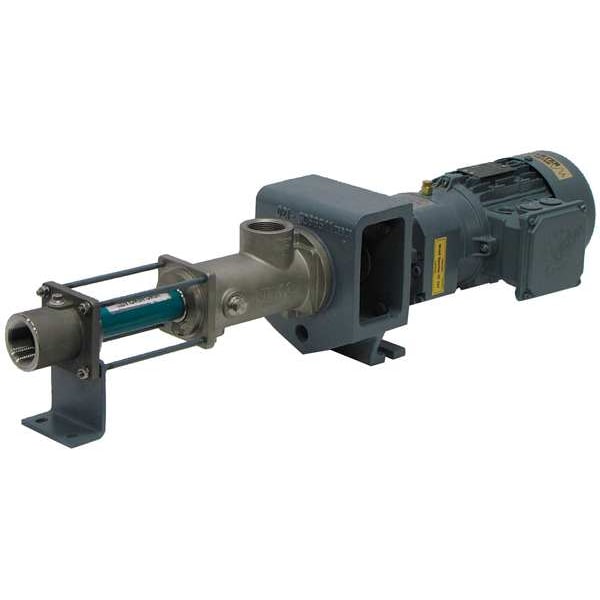

Netzsch Metering Pump, 1/2 HP, 230/460VAC, 78 gph MSVS0078180AF000 - main

Metering Pump, 1/2 HP, 230/460VAC, 78 gph

  • Mfr # MSVS0078180AF000

  • Zoro # G0951133

product price: $3,271.99
/ea
Free Shipping & Returns

Key Features

Min. RPM
120 RPM
Max. RPM
604 RPM
Required HP @ Lower RPM
1/2 hp
Max. Viscosity
1000 cps
Series
NM
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MSVS0078180AF000
Zoro #
G0951133
UPC #
-
Country of Origin
Multiple

Dimensions

Width (In.)
7 in
Length (In.)
32 in
Particle Size
8 mm
Height (In.)
7 in
Overall Width
7 in
Overall Height
7 in
Overall Length
32 in
Intake Connection Size
1 1/8 in
Solid Diameter (Maximum)
8 mm
Discharge Connection Size
1 1/4 in

Details

Item
Progressive Cavity Metering Pump
Min. RPM
120 RPM
Max. RPM
604 RPM
Required HP @ Lower RPM
1/2 hp
Max. Viscosity
1000 cps
Series
NM
Min. Fluid Temp.
23 Degrees F
Flow Rate @ Min. RPM and 180 PSI
9.6 gph
Application
Metering
Flow Rate @ Max. RPM and 90 PSI
72 gph
Min. Pressure (PSI)
0 psi
Flow Rate @ Max. RPM and 0 PSI
78 gph
Includes
Gearmotor Drive
Voltage
230/460V AC
Housing Material
Stainless Steel
Required HP @ Higher RPM
1/2 hp
Flow Rate @ Min. RPM and 0 PSI
15.6 gph
Seal Material
Stainless Steel, Viton
Hz
60
Max. Fluid Temp.
130 Degrees F
Inlet/Outlet (In.)
1-1/4 NPT
Max. Pressure (PSI)
180 psi
Seal Type
Mechanical
Flow Rate @ Max. RPM and 180 PSI
48 gph
Flow Rate @ Min. RPM and 90 PSI
14.4 gph
Media Temperature (Maximum)
130 Degrees F
Frequency
60 Hz
Motor Speed (Maximum)
604 RPM
Discharge Connection Type
NPT
Intake Connection Type
NPT
Motor Speed (Minimum)
120 RPM
Horsepower (Maximum)
1/2 hp
Viscosity (Maximum)
1,000 cps
Media Temperature (Minimum)
23 Degrees F
Nameplate Voltage
115/230V AC

Description

Progressive Cavity Metering Pump, Discharge Connection Size 1 1/4 in, Discharge Connection Type NPT, Housing Material Stainless Steel, Intake Connection Size 1 1/8 in, Intake Connection Type NPT, Media Temperature (Maximum) 130 Degrees F, Motor Speed (Maximum) 604 RPM, Seal Material Stainless Steel, Viton, Viscosity (Maximum) 1,000 cps, Nameplate Voltage 115/230V AC, Solid Diameter (Maximum) 8 mm, Horsepower (Maximum) 1/2 hp, Frequency 60 Hz, Includes Gearmotor Drive
