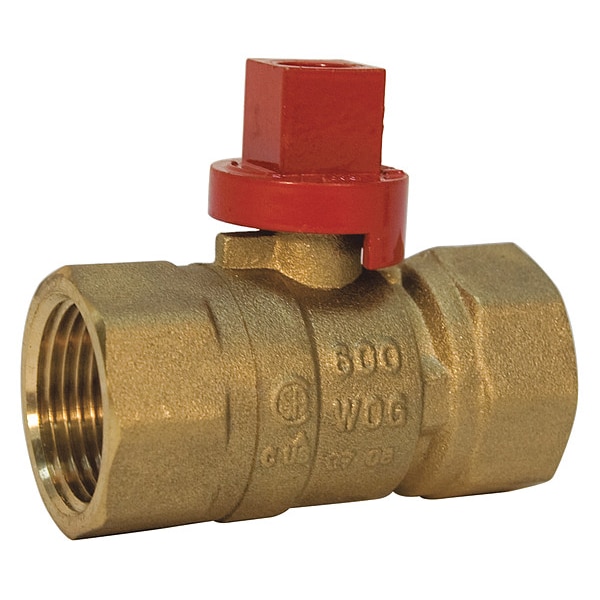

3/4" FNPT Brass Gas Ball Valve Inline

  • Mfr # GB2A

  • Zoro # G1424525

product price:
$
22.49
/ea

Key Features

Ball Material
Chrome Plated Brass
Body Style
Inline
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GB2A
Zoro #
G1424525
UPC #
039923279255
Country of Origin
China

Dimensions

Pipe Size
3/4 in
Overall Length
2.45 in
Handle Height
1.26 in
Connection Size - Side 2
3/4 in
Nominal Valve Size
3/4 in
Connection Size - Side 1
3/4 in
Wire Rope Length
2.45 in
Length
2.45 in

Details

Ball Material
Chrome Plated Brass
Body Style
Inline
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Gas
Connection Type
FNPT x FNPT
Item
Gas Ball Valve
Handle Type
Square
Max. Pressure
600 PSI CWP
Stem Material
Brass
Handle Material
Aluminum
Seat Material
RPTFE
Standards
ANSI Z21.15, ASME B16.44, CGA 91-002, CSA 9.1
Features
The NIBCO(R) brass gas ball valve is recommended for use with indoor gas appliance service. The two-piece valve meets the standards for indoor gas appliance connections, and is certified for use with natural, manufactured, mixed, liquefied petroleum and LP gas/air mixtures
Body Material
Brass
Ball Valve Product Group
Manual
Seal Material
Buna-N
Type
Two Piece, Gas
3-A Standard Compliance
Not Rated
Color - Valve Handle
Red
Maximum Pressure - Combustible Gas
Not Rated
Connection Gender - Side 1
Female
Operating Temperature - Minimum
32 Degrees F
Maximum Pressure - Steam
600 psi
Connection Type - Side 1
IPS
Connection Gender - Side 2
Female
Connection Type - Side 2
IPS
Operating Temperature - Maximum
125 Degrees F
Manufacturer Warranty
5 yr
Valve Construction
Two-Piece
Valve Body Style
Straight
Maximum Pressure - Operating
600 psi

Description

Manual Two-Way Ball Valve, Body Material Brass, For Media Gas, Valve Construction Two-Piece, Nominal Valve Size 3/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 600 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Applicable, Ball Material Brass, Ball Port Style Standard Port, Handle Type Square, Connection Size - Side 1 3/4 in
