3/4 Swt Isolator Circ Pump Kit

The Isolator is a uni-flange ball valve that isolates a circulator pump, allowing virtually no air into the system during pump replacement or service. Its innovative design combines multiple components into a single forged brass body that saves time, labor and space. The Isolator has revolutionized the installation of circulator pumps and has evolved into the largest flanged ball valve program in the industry today, featuring patented technology with further patents pending. Designed for use with water, oil, glycol mix in residential or commercial plumbing and heating systems. Refer to specification sheets for additional technical information. All Webstone products are backed by a limited lifetime warranty.

• Easily Isolates the Pump for Replacement
• Prevents Electrolysis and Eliminates Galvanic Corrosion
• Flange Features a Conical Inlet to Minimize Turbulence
• Multi-Function Drain Makes the Isolator the Only Valve That Drains From Either Side of the Pump
• Fits Virtually Any Standard Circulator Pump

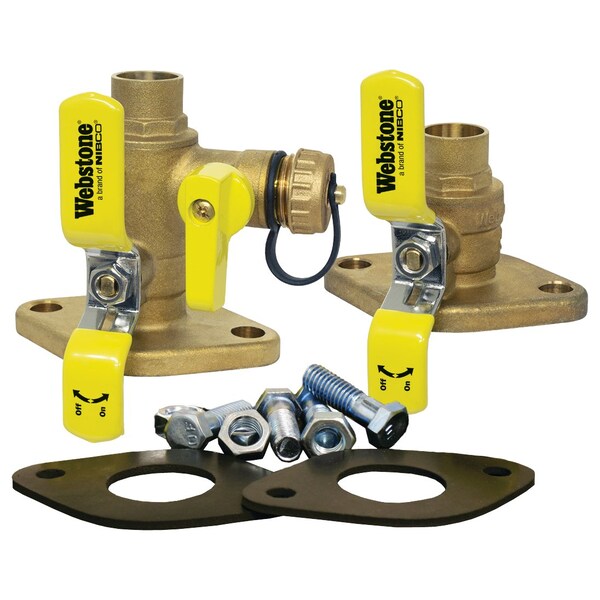

• Kit Contains 1 Isolator and 1 Isolator With Drain, 2 Full-Faced Flange Gaskets, Bonus Wing Style "T" Handle, and 2 Sets of Nuts and Bolts
• Saves Time
• Replaces Components
• Eliminates Leak Paths
• Ball valve with integral spring check saves labor, space, and leak paths
