Smith-Blair

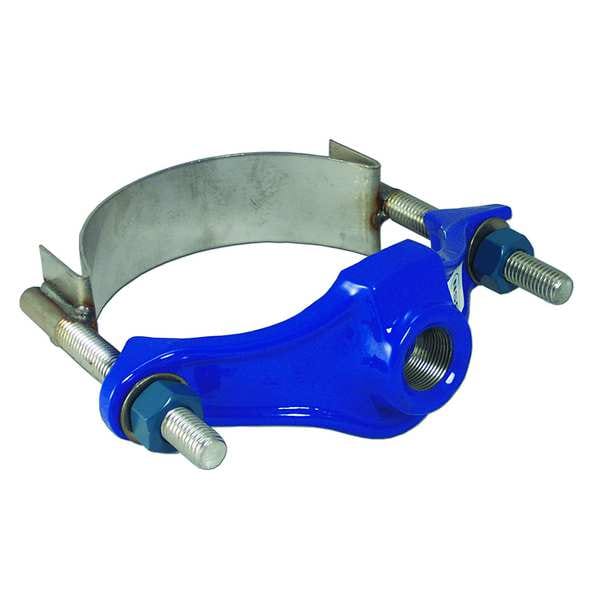

Saddle Clamp, 3 In, Outlet Pipe 1 In

product price: $107.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size 3 in
  • Outlet Pipe Size 1 in
  • Material Ductile Iron Body
  • Required Hole Size (In.) 1 in
  • Outlet Connection 1 in NPT
See all product information

Product Information

Dimensions

Pipe Size 3 in
Outlet Pipe Size 1 in
Required Hole Size (In.) 1 in
Outlet Thread Size 5/8"-4
Required Hole Size 1 in
For Minimum Outside Diameter 2 31/32 in
For Maximum Pipe Size 3 in
For Maximum Outside Diameter 3 17/32 in

Details

Material Ductile Iron Body
Item Saddle Clamp
Outlet Connection 1 in NPT
Type Stainless Steel Single Strap
Max. Pressure 300 psi
Standards ASTM A536, AWWA C800, NSF/ANSI 372, NSF/ANSI 61, UL Listed
Gasket Material Buna-N
Max. Temp. 180 Degrees F
Schedule 40
Nut Material 304 Stainless Steel
Outlet Connection Type NPT
Maximum Operating Pressure 200 psi
Mount Type Hangers, Sign Mounting Brackets
Minimum Operating Temperature -20 Degrees F
Bolt Material Stainless Steel
Maximum Operating Temperature 180 Degrees F
Number of Straps 1
Clamp Material Iron
Product Type Saddle Clamp
For Material Type Asbestos Cement, Cast Iron, Ductile Iron, PVC, Steel
Clamp Material Finish Epoxy
Strap Material Stainless Steel
For Fluid Type Other Chemicals, Water

Description

Saddle Clamp, Bolt Material Stainless Steel, Clamp Material Iron, Clamp Material Finish Epoxy, Clamp Material Grade Not Applicable, For Maximum Outside Diameter 3 17/32 in, For Maximum Pipe Size 3 in, For Minimum Outside Diameter 2 31/32 in, Gasket Material Buna-N, Outlet Connection Type NPT, Outlet Pipe Size 1 in, For Fluid Type Other Chemicals, Water, For Material Type Asbestos Cement, Cast Iron, Ductile Iron, PVC, Steel, Maximum Operating Pressure 200 psi
