Shop NIBCO

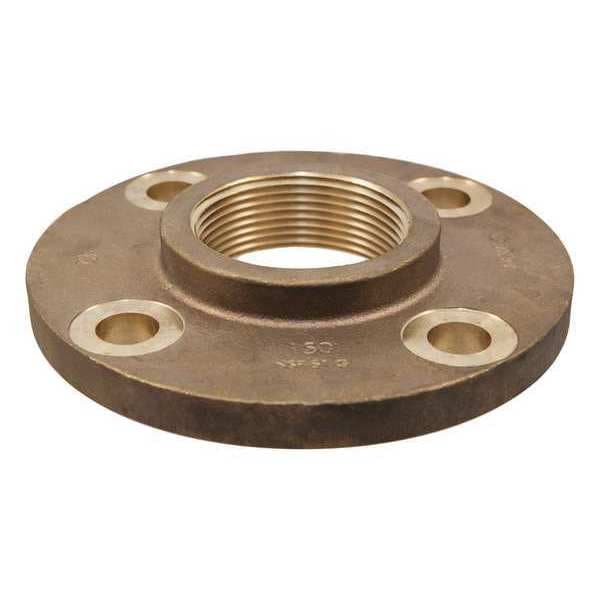

Class 150 Threaded Companion Flange, C

  • Mfr # 775-LF 2

  • Zoro # G5147317

product price:
$
362.99
/ea
Free Shipping & Returns

Key Features

Fitting Connection Type
C
Tube Size
2"
Outside Dia.
2-1/8"
Max. Pressure
291 psi
Basic Pipe Fitting Material
Metal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
775-LF 2
Zoro #
G5147317
UPC #
039923317261
Country of Origin
United States
Fitting Connection Type
C
Max. Pressure
291 psi
Item
Class 150 Threaded Companion Flange
Basic Pipe Fitting Material
Metal
Temp. Range
-20 Degrees to 200 Degrees F
Specific Fitting Shape
Companion Flange
Standards
ASME B16.18, ISO 9001, NSF/ANSI 372, NSF/ANSI 61
Specific Pipe Fitting Shape
Flange
Basic Pipe Fitting Shape
Flange
Tube Fitting Material
Low Lead Cast Bronze
Pipe Fitting Connection Type
C
Fitting Schedule/Class
Class 150
Pipe Fitting Material
Low Lead Cast Bronze
Resistance Properties
Dezincification-Resistant
Fitting Side A Connection Type
FNPT
Fitting Material
Bronze
Maximum Operating Temperature
200 Degrees F
Application
Potable Water
Minimum Operating Temperature
20 Degrees F
Maximum Operating Pressure
291 psi
Fitting Side B Connection Type
Flange
Number of Bolt Holes
4
Fitting Shape
Flange
Material Grade
C87850
Fitting Side 1 Connection Type
Cup
For Media Type
Potable Water
Operating Pressure - Maximum
291 psi
Fitting Side 2 Connection Type
Flange
Operating Temperature - Maximum
175 Degrees F
Operating Temperature - Minimum
32 Degrees F

Description

Sweat Fitting Adapter, Application Potable Water, Fitting Side A Connection Type FNPT, Fitting Side B Connection Type Flange, Fitting Material Bronze, Fitting Side A Pipe Size 2 in, Maximum Operating Pressure 291 psi, Maximum Operating Temperature 200 Degrees F, Specific Fitting Shape Class 150 Threaded Companion Flange, Flange Outside Diameter 6 in, Number of Bolt Holes 4, Flange Thickness 1/2 in, Bolt Hole Diameter 3/4 in, Standards ASME B16.18, ISO 9001, NSF/ANSI 372, NSF/ANSI 61
