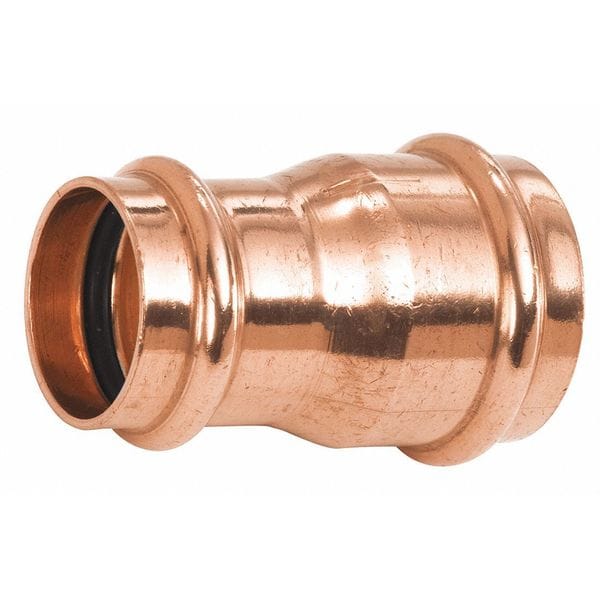

Coupling, Copper, Press-fit 4", 2 1/2"

  • Mfr # 9004000PC

  • Zoro # G3909278


product price:  $228.99
/ea
Free Shipping & Returns

Key Features

Fitting Connection Type
Press x Press
Tube Size
4" x 2-1/2"
Pipe Size - Pipe Fitting
4" x 2-1/2"
Max. Pressure
200 psi
Specific Pipe Fitting Shape
Reducing Coupling
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
9004000PC
Zoro #
G3909278
UPC #
039923378996
Country of Origin
United States

Dimensions

Tube Size
4" x 2-1/2"
Pipe Size - Pipe Fitting
4" x 2-1/2"
Pipe Size (Fittings)
4" x 2-1/2"
Fitting Side 2 Copper Tube Size
2 1/2 in
Fitting Side 1 Copper Tube Size
4 in
Fitting Side 2 Tube Outer Diameter
2 5/8 in
Fitting Side 1 Tube Outer Diameter
4 1/8 in

Details

Fitting Connection Type
Press x Press
Max. Pressure
200 psi
Item
Coupling,4" x 2-1/2",Press Ends
Specific Pipe Fitting Shape
Reducing Coupling
Basic Pipe Fitting Material
Metal
Temp. Range
-20 Degrees to 250 Degrees F
Basic Pipe Fitting Shape
Coupling
Pipe Fitting Connection Type
Press x Press
Specific Fitting Shape
Reducer Coupling
Operating Temperature - Maximum
250 Degrees F
Fitting Side 2 Connection Type
Press-fit
Center Stop Type
Dimple Center Stop
Material Grade
C12200
Operating Pressure - Maximum
200 psi
Compatible Tube Material
Copper
Fitting Side 1 Connection Type
Press-fit
Fitting Material
Copper
Series
PC600-R
Operating Temperature - Minimum
-20 Degrees F
Fitting Shape
Straight
O-Ring Material
EPDM
Compatible Copper Tube Type
Type K, Type L, Type M
Connector Type
Reducer
Standards
ASME B16/51, ASTM B75, CSA MSE 13 and PS-117, IAPMO ASTM F3226
For Media Type
Potable Water
Application
Sprinkler, Tubing Systems, Climate Control, Irrigation

Description

Crimp Coupling Fitting, Application Sprinkler, Tubing Systems, Climate Control, Irrigation, Fitting Material Copper, Material Grade C12200, O-Ring Material EPDM, Flange Outside Diameter Not Applicable, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Standards ASME B16/51, ASTM B75, CSA MSE 13 and PS-117, IAPMO ASTM F3226, Compatible Copper Tube Type Type K, Type L, Type M, Compatible Tube Hardness Not Applicable, Compatible Tube Material Copper
