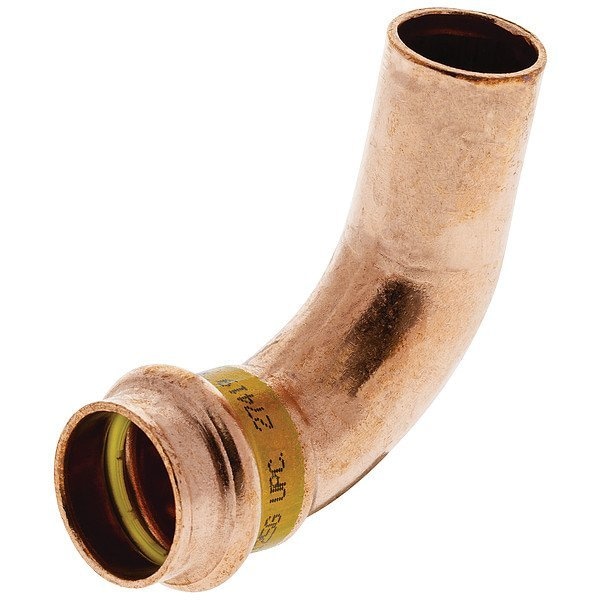

Elbow, Copper, FTG 1 in, Press-fit 1 in
Mfr # 9059200HPC
Zoro # G804180493
product price:Â
$
14.15
/ea
Key Features
Specific Fitting Shape
90 Degrees Elbow Adapter
Standards
ANSI LC4/CSA 6.32, IAPMO/UPC LC-4, ICC-ES PMG 1502, IFGC, NFPA 30, NFPA 30A, NFPA 31 (Supply Line Only), NFPA 54/Z223.1, NFPA 58, UPC Chapter 12
Fitting Side B Connection Type
Press-Fit
Fitting Side B Copper Tube Size
1 in
Compatible Tube Material
Copper
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 9059200HPC
- Zoro #
- G804180493
- UPC #
- 039923412140
- Country of Origin
- United States
- Item
- Crimp Elbow Fitting
- Specific Fitting Shape
- 90 Degrees Elbow Adapter
- Standards
- ANSI LC4/CSA 6.32, IAPMO/UPC LC-4, ICC-ES PMG 1502, IFGC, NFPA 30, NFPA 30A, NFPA 31 (Supply Line Only), NFPA 54/Z223.1, NFPA 58, UPC Chapter 12
- Fitting Side B Connection Type
- Press-Fit
- Compatible Tube Material
- Copper
- Maximum Operating Temperature
- 180 Degrees F
- Fitting Material
- Copper
- Maximum Operating Pressure
- 200 psi
- Application
- Natural Gas, Non-Potable Water, Propane
- Compatible Copper Tube Type
- Type G, Type K, Type L
- Fitting Shape
- 90 Degrees Elbow
- Fitting Side A Connection Type
- FTG
- Minimum Operating Temperature
- -40 Degrees F
- O-Ring Material
- HNBR
- Operating Temperature - Maximum
- 180 Degrees F
- Center Stop Type
- No Center Stop
- Fitting Side 2 Connection Type
- Press-fit
- Operating Temperature - Minimum
- -40 Degrees F
- Fitting Side 1 Connection Type
- FTG
- For Media Type
- Gases, Non-Potable Water
- Operating Pressure - Maximum
- 125 psi
- Connector Type
- Adapter
- Material Grade
- C12200
Description
Crimp Elbow Fitting, Application Natural Gas, Non-Potable Water, Propane, Fitting Side A Connection Type FTG, Fitting Side B Connection Type Press-Fit, Fitting Side A Copper Tube Size 1 in, Fitting Side B Copper Tube Size 1 in, Fitting Material Copper, Material Grade C12200, O-Ring Material HNBR, Specific Fitting Shape 90 Degrees Elbow Adapter, Fitting Side A Tube Outer Diameter 1 in, Fitting Side B Tube Outer Diameter 1 in, Overall Length 2 29/32 in, Number of Bolt Holes Not Applicable
