Shop NIBCO

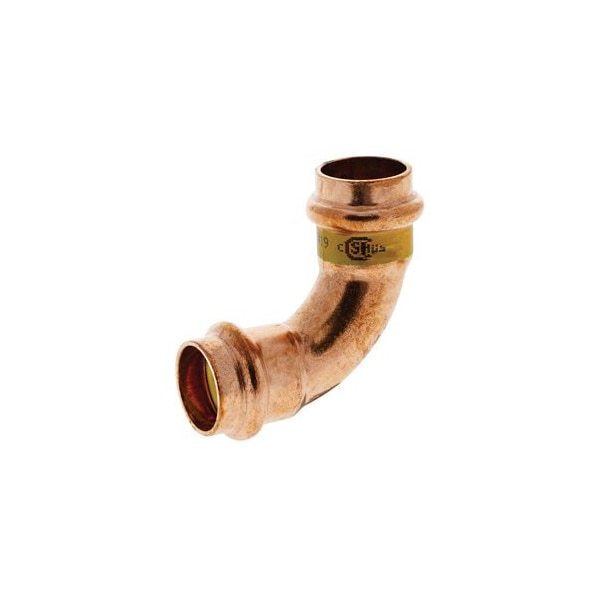

Elbow, Copper, Press-fit2", Press-fit2"

  • Mfr # 9056405HPC

  • Zoro # G104180483

product price:  $76.35
/ea

Key Features

Specific Fitting Shape
90 Degrees Elbow
Standards
ANSI LC4/CSA 6.32, IAPMO/UPC LC-4, ICC-ES PMG 1502, IFGC, NFPA 30, NFPA 30A, NFPA 31 (Supply Line Only), NFPA 54/Z223.1, NFPA 58, UPC Chapter 12
Maximum Operating Pressure
200 psi
Fitting Side A Connection Type
Press-Fit
Compatible Copper Tube Type
Type G, Type K, Type L
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9056405HPC
Zoro #
G104180483
UPC #
039923417053
Country of Origin
United States

Dimensions

Fitting Side B Tube Outer Diameter
2 in
Fitting Side A Tube Outer Diameter
2 in
Fitting Side A Copper Tube Size
2 in
Fitting Side B Copper Tube Size
2 in
Overall Length
5 3/4 in
Fitting Side 2 Tube Outer Diameter
2 in
Fitting Side 2 Pipe Size
2 in
Fitting Side 2 Copper Tube Size
2 in
Fitting Side 1 Pipe Size
2 in
Fitting Side 1 Tube Outer Diameter
2 in
Fitting Side 1 Copper Tube Size
2 in
Wire Rope Length
5 3/4 in

Details

Item
Crimp Elbow Fitting
Specific Fitting Shape
90 Degrees Elbow
Standards
ANSI LC4/CSA 6.32, IAPMO/UPC LC-4, ICC-ES PMG 1502, IFGC, NFPA 30, NFPA 30A, NFPA 31 (Supply Line Only), NFPA 54/Z223.1, NFPA 58, UPC Chapter 12
Maximum Operating Pressure
200 psi
Fitting Side A Connection Type
Press-Fit
Compatible Copper Tube Type
Type G, Type K, Type L
Compatible Tube Material
Copper
Application
Natural Gas, Non-Potable Water, Propane
Fitting Material
Copper
Maximum Operating Temperature
180 Degrees F
O-Ring Material
HNBR
Fitting Shape
90 Degrees Elbow
Fitting Side B Connection Type
Press-Fit
Minimum Operating Temperature
-40 Degrees F
Operating Temperature - Maximum
180 Degrees F
Fitting Side 1 Connection Type
Press-fit
Center Stop Type
No Center Stop
Material Grade
C12200
Operating Temperature - Minimum
-40 Degrees F
Operating Pressure - Maximum
125 psi
For Media Type
Gases, Non-Potable Water
Fitting Side 2 Connection Type
Press-fit
Connector Type
Coupling

Description

Crimp Elbow Fitting, Application Natural Gas, Non-Potable Water, Propane, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Press-Fit, Fitting Side A Copper Tube Size 2 in, Fitting Side B Copper Tube Size 2 in, Fitting Material Copper, Material Grade C12200, O-Ring Material HNBR, Specific Fitting Shape 90 Degrees Elbow, Fitting Side A Tube Outer Diameter 2 in, Fitting Side B Tube Outer Diameter 2 in, Overall Length 5 3/4 in, Number of Bolt Holes Not Applicable

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
