Nibco

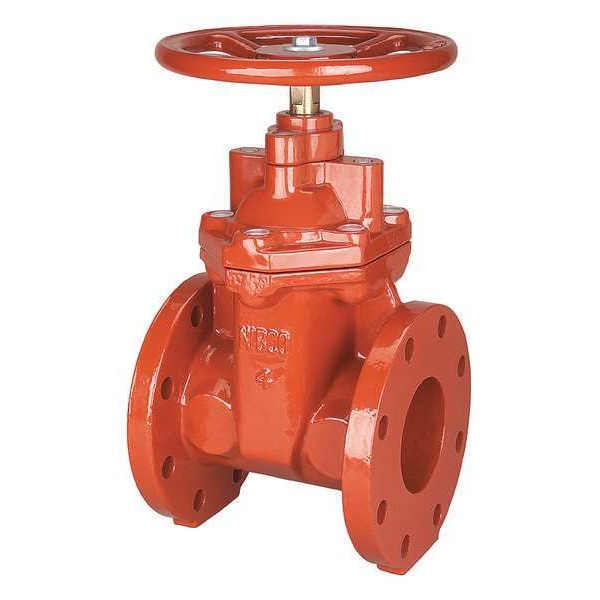

Gate Valve, Class 125, 3 In., Flange

original price: $671.76
5% off
new price: $635.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size 3"
  • Connection Type Flanged
  • Body Material Ductile Iron
  • Top of Handle to Inlet Center 12 19/32 in
  • Handle Material Ductile Iron
See all product information

Product Information

  • Brand Nibco
  • MFR # F619RW 3
  • Zoro # G1220466
  • UPC #
    039923332264
  • Country of Origin United States
  • Category Gate Valves

Dimensions

Pipe Size 3"
Pipe Size - Valves 3"
Inlet to Outlet Length 8 in
Overall Length 8 in
Connection Size - Side 1 3 in
Handle Diameter 10.2 in
Connection Size - Side 2 3 in
Nominal Valve Size 3 in
Handle Height 12.6 in

Details

Connection Type Flanged
Body Material Ductile Iron
Item Gate Valve
Top of Handle to Inlet Center 12 19/32 in
Handle Material Ductile Iron
Max. Water Pressure - CWP 300 psi
Handle Type Hand Wheel
Max. Cold Working Pressure - CWP 300 psi
Valve Max. Fluid Temp. 160 Degrees F
Wedge Material Resilient
Standards AWWA C509
Stem Material Bronze
Valve Stem Type Non-Rising
Body Material - Valves Ductile Iron
Valve Class Class 125
Seal Material EPDM
Bonnet Style Bolted
Stem Type Non-Rising
Seat Material EPDM, Iron
Maximum Pressure - Steam 250 psi
ANSI Flange Class Class 125
Maximum Pressure - Operating 300 psi
Connection Type - Side 2 Flange
Operating Temperature - Maximum 160 Degrees F
Operating Temperature - Minimum 33 Degrees F
NSF Certifications for Food and Drinking Water NSF 61
Number of Flange Bolt Holes 4
Wedge Style Resilient
Connection Type - Side 1 Flange
For Media Water
Bonnet Material Ductile Iron

Description

Gate Valve, For Media Water, Body Material Ductile Iron, Nominal Valve Size 3 in, ANSI Flange Class Class 125, Maximum Pressure - Operating 300 psi, Maximum Pressure - Steam 250 psi, Stem Type Non-Rising, Stem Material Cast Iron, Wedge Style Resilient, Wedge Material Ductile Iron, Seat Material EPDM, Iron, Seal Material EPDM, Handle Type Wheel, Bonnet Material Ductile Iron, Bonnet Style Bolted, Connection Gender - Side 1 Not Applicable, Connection Type - Side 1 Flange
