  11. Wye, 45 Deg, 1/2 In, Low-Lead Cast Bronze
Shop All Copper Fittings
Nibco

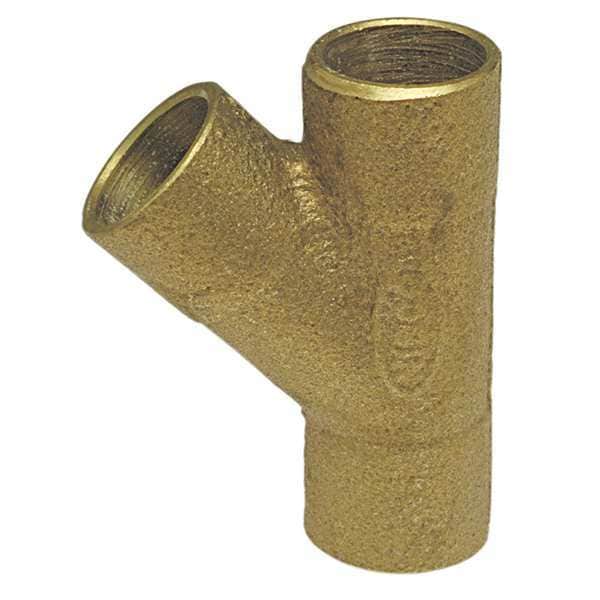

Wye, 45 Deg, 1/2 In, Low-Lead Cast Bronze

product price: $23.39
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Tube Fitting Material Low Lead Cast Bronze
  • Pipe Fitting Material Low Lead Cast Bronze
  • Specific Fitting Shape 45 Degree Wye
  • Fitting Connection Type C x C x C
  • Tube Size 1/2"
See all product information

Product Information

Dimensions

Tube Size 1/2"
Outside Dia. 5/8"
Fitting Side B Tube Outer Diameter 5/8 in
Fitting Side C Tube Outer Diameter 5/8 in
Fitting Side A Tube Outer Diameter 5/8 in
Fitting Side A Copper Tube Size 1/2 in
Fitting Side B Copper Tube Size 1/2 in
Fitting Side C Copper Tube Size 1/2 in

Details

Item 45 Degree Wye
Tube Fitting Material Low Lead Cast Bronze
Pipe Fitting Material Low Lead Cast Bronze
Specific Fitting Shape 45 Degree Wye
Fitting Connection Type C x C x C
Basic Pipe Fitting Material Metal
Basic Pipe Fitting Shape Wye
Temp. Range -20 Degrees to 200 Degrees F
Standards ASTM B584 Alloy C87850; Third-Party Certified To NSF/ANSI 61 Annex G; ASME B16.18 Design Standards
Specific Pipe Fitting Shape 45 Degrees Wye
Pipe Fitting Connection Type C x C x C
Max. Pressure 577 psi
Minimum Operating Temperature 20 Degrees F
Application Potable Water
Fitting Side B Connection Type Cup
Resistance Properties Dezincification-Resistant
Maximum Operating Pressure 577 psi
Maximum Operating Temperature 200 Degrees F
Fitting Material Bronze
Fitting Side A Connection Type Cup
Fitting Side C Connection Type Cup

Description

Wye, 45 Degrees, Application Potable Water, Fitting Side A Connection Type Cup, Fitting Side B Connection Type Cup, Fitting Side C Connection Type Cup, Fitting Side A Copper Tube Size 1/2 in, Fitting Side B Copper Tube Size 1/2 in, Fitting Side C Copper Tube Size 1/2 in, Fitting Material Bronze, Fitting Side A Tube Outer Diameter 5/8 in, Fitting Side B Tube Outer Diameter 5/8 in, Fitting Side C Tube Outer Diameter 5/8 in, Specific Fitting Shape 45 Degrees Wye, Maximum Operating Pressure 577 psi
