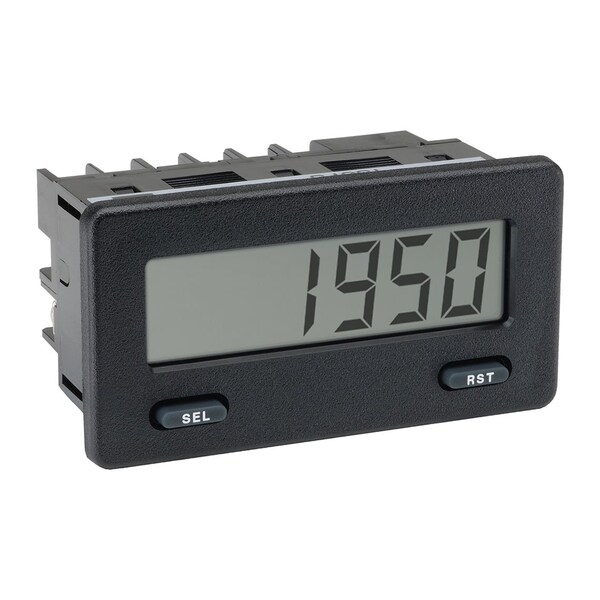

Noshok Compact Smart System Indicator, Current Input, Reflective Display 1950C-1-0 - main

Compact Smart System Indicator, Current Input, Reflective Display

  • Mfr # 1950C-1-0

  • Zoro # G808660991

product price: $469.99
/ea
Free Shipping & Returns

Key Features

Series
1900
Accuracy
Less Than 0.1%
Application
Process Indication, On/Off Pump Controls, Compressor Controls, Safety or Shutdown Alarms
Standards
European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326-1, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection
Features
5 Digit, 0.48" Liquid Crystal Display; 2 Programmable Function Keys; Electrically Erasable Programmable Read-Only Memory, Captures And Stores Min/Max Measurement
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1950C-1-0
Zoro #
G808660991
UPC #
-
Country of Origin
United States

Details

Item
Digital Indicator
Series
1900
Accuracy
Less Than 0.1%
Application
Process Indication, On/Off Pump Controls, Compressor Controls, Safety or Shutdown Alarms
Standards
European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326-1, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection
Features
5 Digit, 0.48" Liquid Crystal Display; 2 Programmable Function Keys; Electrically Erasable Programmable Read-Only Memory, Captures And Stores Min/Max Measurement
User Inputs
1 Programmable, 28V DC Continuous
DC Voltage
9 to 28V DC
Input Signals
Current
Update Rate
500 ms
Normal Rejection Mode
60 dB
Display Intensity Power Consumption
95 mA
Altitude
Up to 2000 m
Electrical Connection
Screw Terminals
Shock
30G
Linearization
2 Point
Non-Condensing Humidity
0.85
Input DC Voltage
0 to 10V DC
Max. Operating Temperature
75°C
Display Type
Reflective
Effect
Less Than or Equal 0.1%
Full Scale Temperature
18°F
Normal Rejection Mode Frequency
50/60 Hz
Storage Temperature
-31 to 185°F
Typical Power Consumption
10 mA
Environmental Rating
NEMA 4, 4X; IP65
Input Current
4 to 20 mA
Vibration (Hz)
5 to 500
Min. Operating Temperature
-35°C

Description

Offers all the features of a full size panel meter in a compact digital display for pressure, flow, level, force, and temperature measurement. 5 digit, 0.48 in. LCD display with a span range of -9999 to 99999. Reflective LCD display; or green backlighting optional. Display is fully expandable to accommodate applications requiring relays, dual sinking outputs, and serial communications by RS232 or RS485. Fully scalable & field upgradable. Simple programming through front panel.
