  11. Electronic Off Delay Timer, 5 sec to 3 hr
This item is Discontinued.

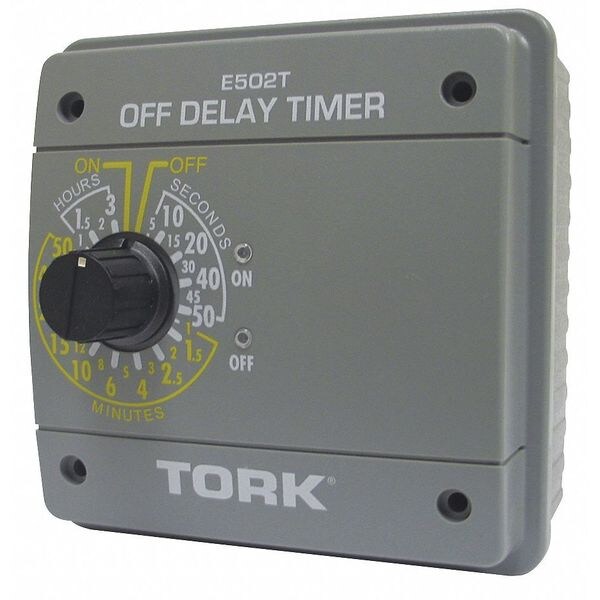

Nsi Tork Electronic Off Delay Timer, 5 sec to 3 hr E502T

Electronic Off Delay Timer, 5 sec to 3 hr (Discontinued)

  • Mfr # E502T
  • Zoro # G4707464
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E502T
Zoro #
G4707464
UPC #
786261825162
Country of Origin
United States

Dimensions

Display Height
5-1/4"
Overall Height - Relay
5.25 in
Height
4-13/16"
Body Width - Relay
4.19 in
Display Width
4-1/4"
Width
4-13/16"
Depth
3-5/16"
Body Depth - Relay
3.31 in
Body Height - Relay
5.25 in

Details

Item
Electronic Off Delay Timer
Operation Mode
5 sec. to 3 hr.
Number of Channels
1
Contact Form
SPDT
Voltage
120/240VAC
Amps
20
HP @ 120V
1
HP @ 240V
2
Max. Time Setting - Timer
3 hr
Max. On/Off Cycles
1
Number of Pins - Relay
7
Coil Volts
120/240VAC
Function - Timing Relay
Off Delay
Min. Time Setting - Timer
5.00 sec
Mounting - Relay
Surface
NEMA Rating
4X
AC Contact Rating - Relay
20A @ 120/240V
Enclosure
Plastic
Description/Special Features
Dial Sets 32 Time Durations From 5 Seconds To 3 Hours
Operating Temp.
32 Degrees to 122 Degrees F
Electrical Connection
Screw Clamp
Adjustment Method - Timer
Rotary Knob
Hz - Electrical
60 Hz
Number of Poles
1
Item - Relay
Single Function Timing Relay
Color
Gray
Standards
UL listed, CSA certified
Contact Form - Relay
SPDT

Description

Electronic Off Delay Timer, Contact Form SPDT, Electrical Connection Screw Clamp
