Shop NSI TORK

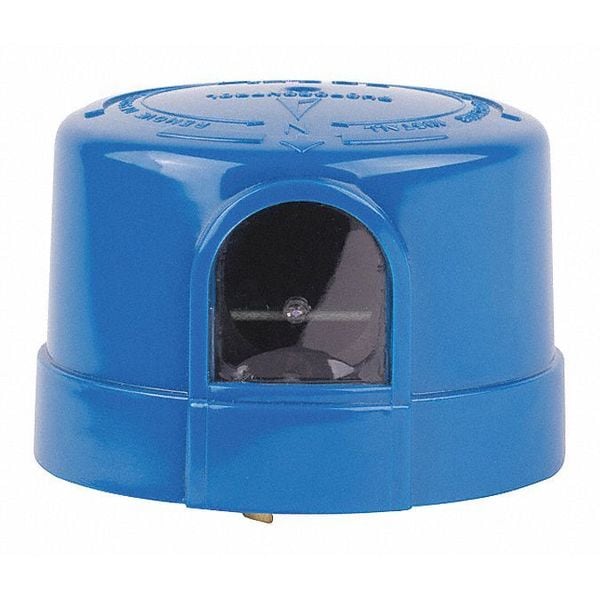

Photocontrol, Polycarbonate, TurnLock, Blue

  • Mfr # ZTL124
  • Zoro # G2672439
product price:
$
34.99
/ea

Key Features

Voltage
105V AC to 305V AC
Length
3 3/16 in
Standards
ANSI C136.10-2010, CSA TIL A15, UL 773
Width
3 3/16 in
Setting
On/Off
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZTL124
Zoro #
G2672439
UPC #
786261789099
Country of Origin
China

Dimensions

Length
3 3/16 in
Width
3 3/16 in
Depth
2 3/16 in
Manufacturers Warranty Length
15 yr
Overall Height
3.19 in
Overall Depth
2.19 in
Overall Width
3.19 in
Fits Chest Size
510J MOV Surge Arrestor, 11 in 16 GA Hookup Wires

Details

Item
Photocontrol
Voltage
105V AC to 305V AC
Standards
ANSI C136.10-2010, CSA TIL A15, UL 773
Setting
On/Off
Temp. Range
-40 Degrees to 158 Degrees F
Foot Candles On
1.5
Housing Material
Polycarbonate
Contact Form
SPST
Color
Blue
Foot Candles Off
2.25
Max. Incandescent Amps
8.3 A
Mounting
Turn-Lock
Max. Wattage
1,800
Includes
Twist Lock
Compatible Lighting
Compact Fluorescent, HID, Inductive, LED
Mounting Style
Turn Lock
Ballast Current - Maximum
8 A
Time Delay - Minimum
3 sec
Wattage - Maximum
1,000 W
Series
ZTL
AC Operating Voltage
105-305V AC
Body Color
Blue
Operating Temperature - Maximum
158 Degrees F
Features
510J MOV Surge Arrestor, 11 in 16 GA Hookup Wires
Resistance Properties
Weather Resistant
Indoor/Outdoor Usage
Outdoor
Incandescent Current - Maximum
8.3 A
Time Delay - Maximum
5 sec
Off Illumination - Maximum
2.25 fc
On Illumination - Maximum
1.5 fc
Operating Temperature - Minimum
-40 Degrees F

Description

Photocontrol, Mounting Turn-Lock, Voltage 105 to 305V AC, Max. Wattage 1,800, Max. Incandescent Amps 8.3 A, 1.5 Foot Candles On, 2.25 Foot Candles Off, Color Blue, Temp. Range -40 Degrees to 158 Degrees F, Length 3 3/16 in, Width 3 3/16 in, Depth 2 3/16 in, Contact Form SPST, Housing Material Polycarbonate, Setting On/Off, Standards ANSI C136.10-2010, CSA TIL A15, UL 773, Includes Twist Lock
