Shop All Flange Bearings
Ntn

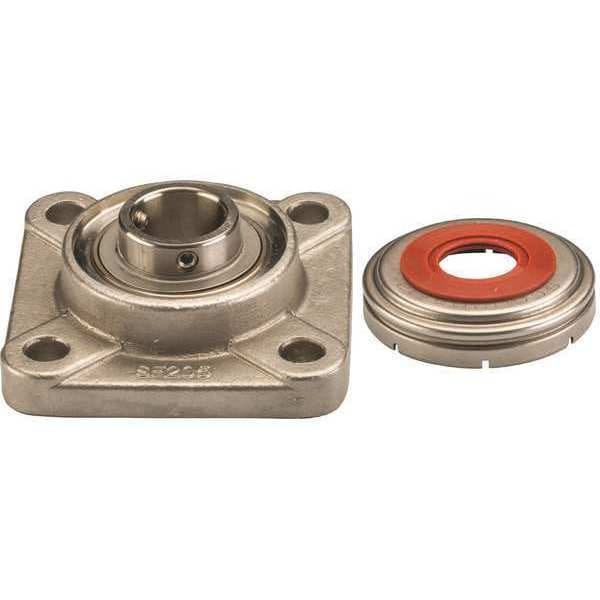

Flange Bearing, 4-Bolt, 2" Bore Dia.

product price: $765.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Bearing Insert Type Radial Ball
  • Bore Dia. 2 in
  • Shaft Locking Type Set Screws
  • Bearing Housing Material Type Stainless Steel
  • Bearing Insert Material Stainless Steel
See all product information

Product Information

Dimensions

Bore Dia. 2 in
Bolt Size 5/8 in
Overall Height 6.375 in
Overall Length 6.375 in
Overall Width 2 19/64 in
Mount Hole Center-to-Center Height 5.125 in
Back Side to Center Width 0.984 in
Mounting Bolt Size 5/8 in
Mount Hole Size 0.748 in
Bore Diameter 2 in
Mount Hole Center-to-Center Length 5.125 in

Details

Bearing Insert Type Radial Ball
Shaft Locking Type Set Screws
Bearing Housing Material Type Stainless Steel
Bearing Insert Material Stainless Steel
Bolt Hole Center-to-Center 5 1/8 in
Series SF-FG1
Bearing Lubrication FDA/USDA-H1 Solid Grease
Includes (2) Set Screws
Item 4 Bolt Flange Bearing
Static Load Capacity 5,730 lb
Finish Unfinished
Dynamic Load Capacity 7,640 lbf
Standards NSF H1 Registered
Temp. Range 14 Degrees to 212 Degrees F
Housing Material Stainless Steel
Seal Material Silicone
Static Radial Load Capacity 5,730 lbf
Closure Double Sealed
Seal Type Contact
Flange Thickness 25/32 in
Maximum Speed 2,400 RPM
Housing Type Square
Rolling Element Rows 1
Number of Mount Holes 4
Housing Material Grade 440C
Included Bearing SUC211-32FG1
Lubricant Material FDA/USDA-H1 Solid Grease
Housing Material Finish Unfinished
Resistance Properties Corrosion Resistant
Lubrication Openings None
Bore Type Cylindrical
Maximum Temperature 250 Degrees F
Bearing Material Grade 440C
Application Agriculture, Automotive, Cosmetic/Pharmaceutical, Food Processing, Industrial Machinery, Machine Tools, Material Handling, Refinery/Petrochemical
System of Measurement Inch
Minimum Temperature -20 Degrees F

Description

4 Bolt Flange Bearing, Back Side to Center Width 0.984 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 2 in, Bore Type Cylindrical, Closure Double Sealed, Housing Material Stainless Steel, Housing Type Square, Included Bearing SUC211-32FG1, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 2,400 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Height 5.125 in, Number of Mount Holes 4
