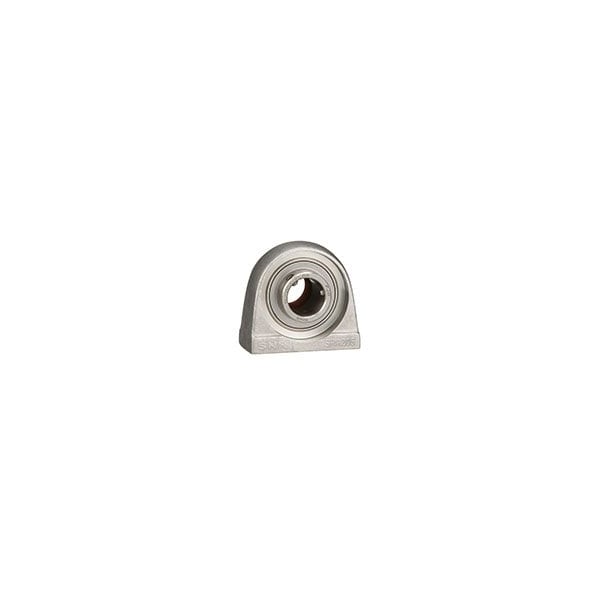

PillowBlock Tapd Base Bearing, Ball, 1-1/4

NTN |Zoro #: G0874395|Mfr #: SUCPA207-20

$416.00 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0874395 Mfr #: SUCPA207-20
Series: Corrosion Resistant with USDA-H1 GreaseBearing Insert Type: Ball
Number of Bolts: 2Locking Type: Set Screw
Bearing Lubrication: Caltex FM EP or Equivalent USDA-H1 GreaseTemp. Range: -4 Degrees to 248 Degrees F
Item: Pillow Block Tapped Base BearingNumber of Bolts: 2
Series: Corrosion Resistant with USDA-H1 GreaseBore Dia.: 1-1/4"
Mounting Surface to Shaft Center: 47.6mmLocking Type: Set Screw
Housing Material: Stainless SteelDimension H: 1.87mm
Dimension W: 110mmBolt Size: M10
Dimension E: 1-1/2"Dimension A: 95mm
Finish: ChromeBearing Insert Material: 440C Stainless Steel
Overall Width: 48mmDynamic Load Capacity: 4520 lb.
Overall Length: 108mmStatic Load Capacity: 3500 lb.
Overall Height: 95mmDimension M: 80mm
Dimension B: 1.89mmDimension N: 17.5mm
Dimension G: 18mmCountry of Origin (subject to change): China

Product Description

Pillow Block Tapped Base Bearing, Number of Bolts 2, Corrosion Resistant with USDA-H1 Grease Series, Bore Dia. 1-1/4 In., Ball Bearing Type, 52100 Chrome Steel Bearing Material, Stainless Steel Housing Material, Set Screw Locking Type, Mounting Hole Center 82.6mm, Mounting Surface to Shaft Center 47.6mm, Overall Height 95mm, Overall Width 48mm, Overall Length 108mm, Bolt Hole Size M10, Ball Bearing Insert, Dynamic Load Capacity 4520 lb., Static Load Capacity 3, 500 lb.
