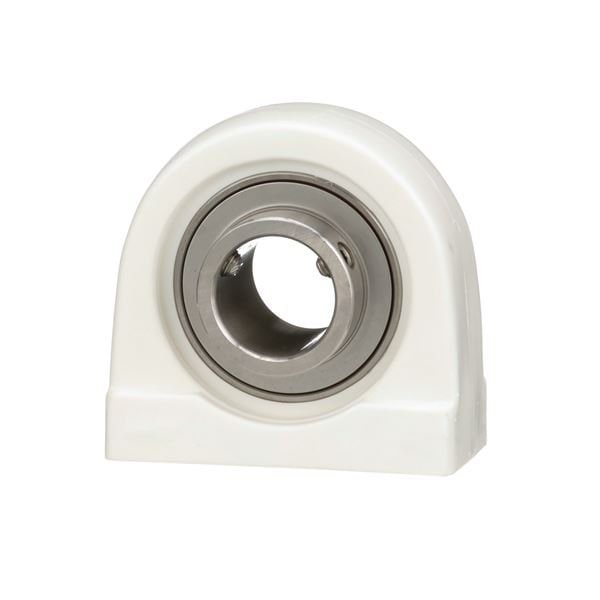

Thermoplastic Tapped Base Pillow Block
Mfr # SUCTBL206-19
Zoro # G023654522
product price:Â
$
246.99
/ea
Free Shipping & Returns
Key Features
Shaft Locking Type
Set Screws
Internal Clearance
CN
System of Measurement
Inch
Minimum Temperature
-4 Degrees F
Lubricant Material
H-1 Food Grade Grease
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SUCTBL206-19
- Zoro #
- G023654522
- UPC #
- -
- Country of Origin
- Multiple
Dimensions
- Overall Width
- 1.67 in
- Mount Hole Center-to-Center Length
- 3 in
- Overall Height
- 3.31 in
- Overall Length
- 3.98 in
- Bore Diameter
- 1 3/16 in
- Mounting Bolt Size
- 7/16"-14 UNC-2B
- Center Height
- 1 11/16 in
- Length
- 3.98 in
Description
Pillow Block Bearing, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Insert Ball, Bore Diameter 1 3/16 in, Center Height 1 11/16 in, Expansion Type Fixed, For Environment Food and Beverage, Housing Material Polymer, Lubricant Material H-1 Food Grade Grease, Maximum Speed 4,900 RPM, Maximum Temperature 212 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Length 3 in, Mount Type Tapped Base, Number of Mount Holes 2, Overall Height 3.31 in
