Shop NUMATICS

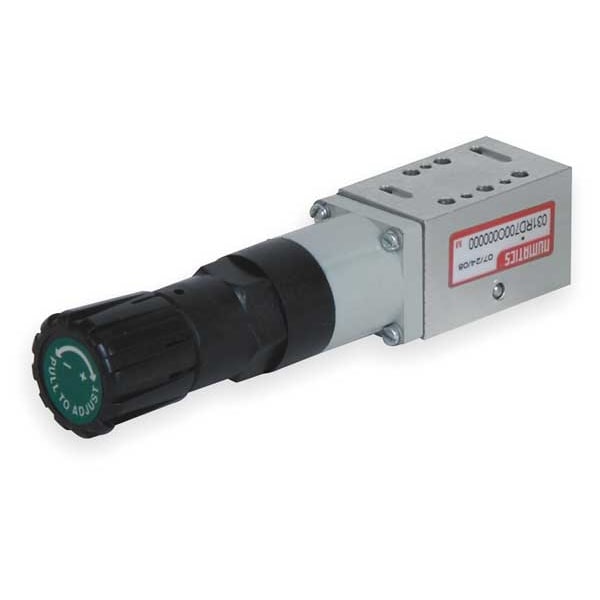

Sandwich Single Air Regulator, 14 cfm

  • Mfr # 031RS700O000000

  • Zoro # G1478942

product price:
$
90.49
/ea

Key Features

Pipe Size - Regulators
1/8 in
Max. Inlet Pressure - Regulators
150 psi
Adjustment Range - Regulators
10 to 100 psi
Max. Temp. - Regulators
115 Degrees F
Overall Height - Regulators
0.93 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
031RS700O000000
Zoro #
G1478942
UPC #
-
Country of Origin
United States
Item
Sandwich Single Air Regulator
Max. Inlet Pressure - Regulators
150 psi
Adjustment Range - Regulators
10 to 100 psi
Max. Temp. - Regulators
115 Degrees F
Compressed Air Regulator Product Grouping
Sandwich Single Air Regulator
Includes
Electrical Connector
Gauge Port
1/8 in NPT
Max. Inlet Pressure (Regulators)
150 psi
Max. Flow - Regulators
14 cfm
Adjustment Range (Regulators)
10 to 100 psi
Max. Temp. (Regulators)
115 Degrees F
Max. Flow (Regulators)
14 cfm
Adjustment Knob
Round
Valve Design
Relieving
Series
Mark 3
Minimum Regulated Pressure
10 psi
Standards
CSA, UL Listed
Maximum Flow Rate
14 cfm
Maximum Operating Pressure
150 psi
Minimum Operating Temperature
-10 Degrees F
Regulator Type
Relieving
Pressure Gauge Included
Yes
For Fluid Type
Air
For Substance Type
Air
Pressure Control Range
10 to 100 psi
Pressure Gauge Port Gender
Female
Number of Air Outlets
1
Maximum Regulated Pressure
100 psi
Adjustment Mechanism
Knob
Pressure Gauge Port Type
NPT
Number of Air Inlets
1
Maximum Operating Temperature
115 Degrees F

Description

Sandwich Single Air Regulator, Series Mark 3, Pressure Control Range 10 to 100 psi, Maximum Flow Rate 14 cfm, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 115 Degrees F, Overall Depth 1/4 in, Overall Height 15/16 in, Overall Width 7/8 in, Adjustment Mechanism Knob, For Fluid Type Air, For Substance Type Air, Includes Electrical Connector, Maximum Regulated Pressure 100 psi, Minimum Operating Temperature -10 Degrees F, Minimum Regulated Pressure 10 psi, Number of Air Inlets 1
