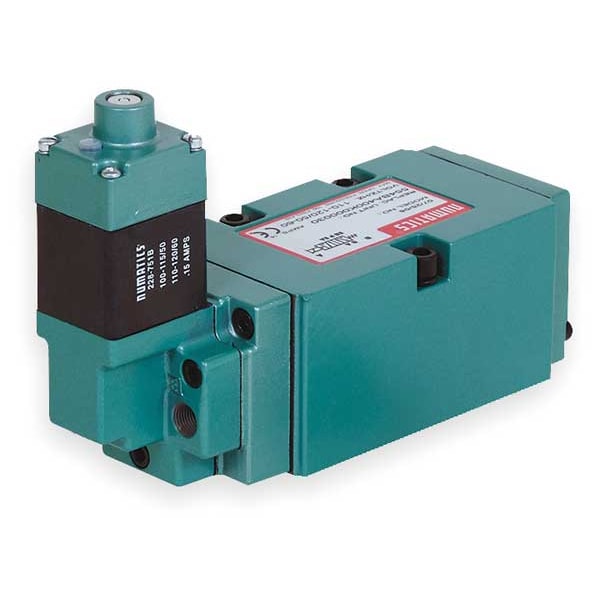

Solenoid Air Control Valve, 1/2 In, 120VAC

NUMATICS |Zoro #: G0727885|Mfr #: 554BA400K000030

$285.84 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0727885 Mfr #: 554BA400K000030
NEMA Classification: NEMA 4Shifting Technology: Spool & Sleeve
Vacuum Range: 0 to 28" HgAir Valve Type: 4-Way, 2-Position
Standards: CE, CSAItem: Solenoid Air Control Valve
CFM: 253Pilot Pressure: 20 to 125 psig
Overall Width: 2-9/16"Overall Length: 8-1/2"
Overall Height: 2-3/16"Pilot Port Size: 1/2" NPT
Body Style: Body PortedOverride: Non-Locking Flush
Ambient Temp. Range: -10 Degrees to 115 Degrees FActuator/Return: Solenoid Air Pilot/Spring
Voltage: 120VACPressure Range: 20 to 150 psi
Electrical Connections: AC Plug-In w/LightPower Consumption: .093W
Coefficient of Volume: 5.5Pipe Size: 1/2"
Country of Origin (subject to change): United States

Product Description

Solenoid Air Control Valve, 4-Way, 2-Position, Actuator/Return Solenoid Air Pilot/Spring, Body Style Body Ported, Pipe Size 1/2 In., Voltage 120VAC, 253 CFM, Pilot Port Size 1/2 In. NPT, Pilot Pressure 20 to 125 psig, Coefficient of Volume 5.5, AC Plug-In w/Light Electrical Connections, Shifting Technology Spool & Sleeve, Power Consumption .093W, Pressure Range 20 to 150 psi, Vacuum Range 0 to 28 In. Hg, Ambient Temp. Range -10 Degrees to 115 Degrees F, Override Non-Locking Flush
