80/100/120W LED Cutoff Wall Pack 3K/4K/5K CCT Field Selectable Bronze 120-347 V
Mfr # 65/556
Zoro # G415939206
Key Features
Specifications
Product Information
- MFR #
- 65/556
- Zoro #
- G415939206
- UPC #
- 45923434167
- Country of Origin
- Viet Nam
Dimensions
- Width
- 13.28 in
- Height
- 9.36 in
- Length
- 8.11 in
Details
- Voltage
- 120V-347V
- Watts
- 80W/100W/120W
- Lumens
- 12107L-17789L
- Finish
- Bronze
- Fixture Rated Life
- 50,000 hr
- Fixture Housing Color
- Bronze
- Application
- Lighting
- Housing Material
- Die-Cast Aluminum
- Lamp Included
- Integrated
- Damp/Wet Rating
- Wet
- Color Temp.
- 3000K/4000K/5000K
- Standards
- cULus; FCC; Wet; RoHS; DLC; IP65
- CRI
- 80+
- Dimmable
- Yes
- Lamp Shape
- Integrated LED
- Lens Finish
- Opaque
- Beam Spread
- 106
- Lamp Base
- Integrated
- Light Color
- Soft White to Natural Light
- Style
- Utility
Description

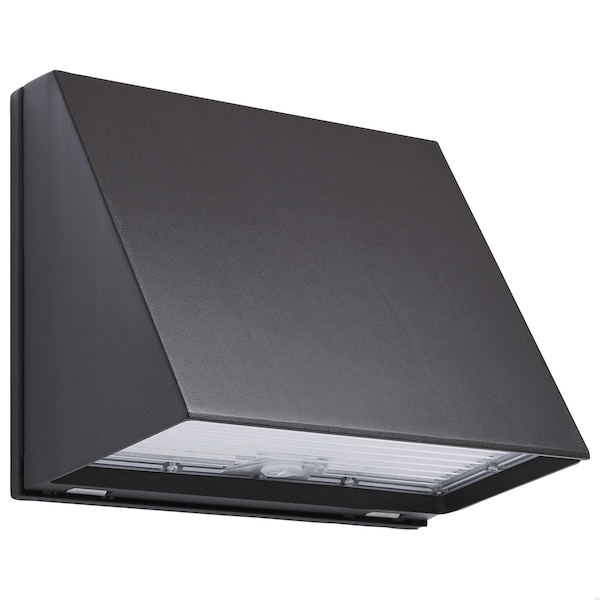

Illuminate outdoor spaces with SATCO NUVO's 65-556 architecturally styled LED Full Cutoff Wall Pack. Operating on 120-347V with zero up light, this fixture features wattage selectability of 80W, 100W, and 120W, delivering a maximum output of 17,789 lumens-equivalent to a 400W traditional source. A by-passable photocell and built-in sensor port provide added control, with optional sensors sold separately for customizable detection. The durable bronze die-cast aluminum housing complements building exteriors, while field-selectable CCT offers additional flexibility. Designed for longevity, it is wet-location rated, IP65 rated, and lasts 50,000 hours. Backed by DLC Premium certification, this wall pack delivers reliable, adaptable illumination.
- Full Cutoff with Zero Uplight
- B2-U0-G2 Rating
- CCT and Wattage Selectable
- Integrated Sensor Port
- Integrated By-passable Photocell
- Range Voltage 120-347V
- IP65 Rated
- Bronze Die-Cast Aluminum Housing
- 50,000 Hour Functional Life
