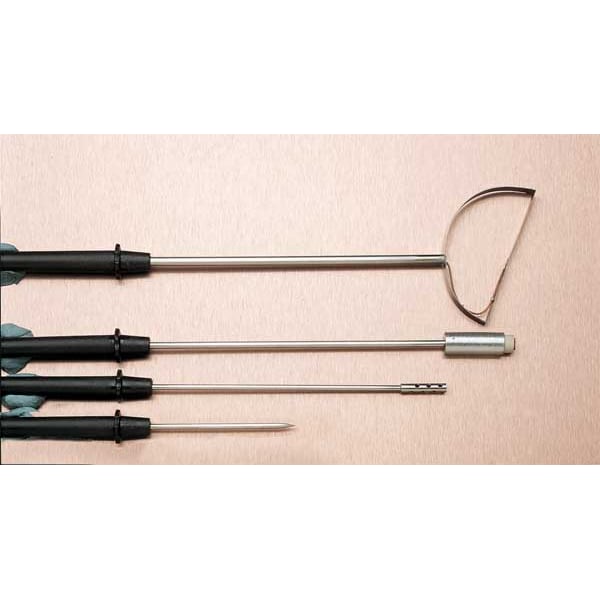

Oakton Temperature Probe, Mini Plug, Type K WD-08516-60 - main

Temperature Probe, Mini Plug, Type K

  • Mfr # WD-08516-60

  • Zoro # G4648603

product price: $120.99
/ea
Free Shipping & Returns

Key Features

Sensor Type
Thermocouple
Temp. Range (F)
-418 Degrees to 1500 Degrees
Temp. Range (C)
-250 Degrees to 899 Degrees
Probe Length
10 in
Primary Measuring Element
Thermocouple
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WD-08516-60
Zoro #
G4648603
UPC #
-
Country of Origin
United States

Dimensions

Probe Length
10 in
Probe Wire Length
5 ft
Wire Length
5 ft.
Probe Dia.
1/2 in
Cable Length
60 in
Probe Size
1/2 in x 10 in
Probe Diameter
0.5 in

Details

Item
Immersion Temperature Probe
Sensor Type
Thermocouple
Temp. Range (F)
-418 Degrees to 1500 Degrees
Temp. Range (C)
-250 Degrees to 899 Degrees
Primary Measuring Element
Thermocouple
Probe Temp. Measuring Element
K Thermocouple
Probe Connector
Mini
Probe Connection Type
Mini
Probe Contact Material
316 Stainless Steel
Accuracy
+/-3.0 Degrees F (1.1 Degrees C) or +/-0.4% Reading Above 212 Degrees F(100 Degrees C), +/-3.6 Degrees F (2.2 Degrees C) or 2% of Reading Between -58 to 211 Degrees F (-50 to 99 Degrees C), +/-7.2 Degrees F (4 Degrees C) or +/-4% of Reading Between -60 to -238 (-51 to -150 Degrees C)
Use
Air or Liquids
Response Time
1.25 sec
Includes
5 ft PVC Coiled Cord with Strain Relief
Probe Material
316 Stainless Steel
Calibration Certificate
NIST
For Use With
Any Oakton Digi Sense(R) and Acorn(R) Thermocouple
Temperature Measuring Element
K Thermocouple
For Solids
No
For Surfaces
Yes
Maximum Temperature C
649 Degrees C
Probe Bend
Straight
For Liquids and Gels
No
Minimum Temperature F
-250 Degrees F
For Application
Surface
Maximum Temperature F
1,200 Degrees F
Minimum Temperature C
-150 Degrees C
Head Material
ABS Plastic
Thermowell Connection
Mini Connector
Junction Type
Exposed
Thermocouple Type
Type K
Includes Thermowell
No
Handle Type
Straight Handle
Connector Type
Mini Plug
Tip Style
Pointed
Probe Sheath Material
316 Stainless Steel
Handle Material
ABS Plastic
Temperature Range
-250 Degrees to 1,200 Degrees F/-150 Degrees to 649 Degrees C
For Gases
No
For Air
No
Minimum Temperature °F
-250 Degrees F
Minimum Temperature °C
-150 Degrees C
Maximum Temperature °C
649 Degrees C
Maximum Temperature °F
1,200 Degrees F
Minimum Temperature °F
-250 Degrees F
Maximum Temperature °F
1,200 Degrees F
Maximum Temperature °C
649 Degrees C
Minimum Temperature °C
-150 Degrees C

Description

Immersion Temperature Probe, Type K, Exposed, For Application Surface, Mini Plug, Probe Size 1/2 in x 10 in, Cable Length 60 in, -250 Degrees to 1,200 Degrees F/-150 Degrees to 649 Degrees C, Thermocouple, Thermowell Connection Mini Connector
