Window Flow Sight for Full Flow - 7/16in. dia, 1/4in. Female NPT, 1/4in. Female NPT, Buna-N
Mfr # A715-2
Zoro # G216547334
product price: $27.39
/eaKey Features
Overall Length
2 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
A715-2
Zoro #
G216547334
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
2 in
Description

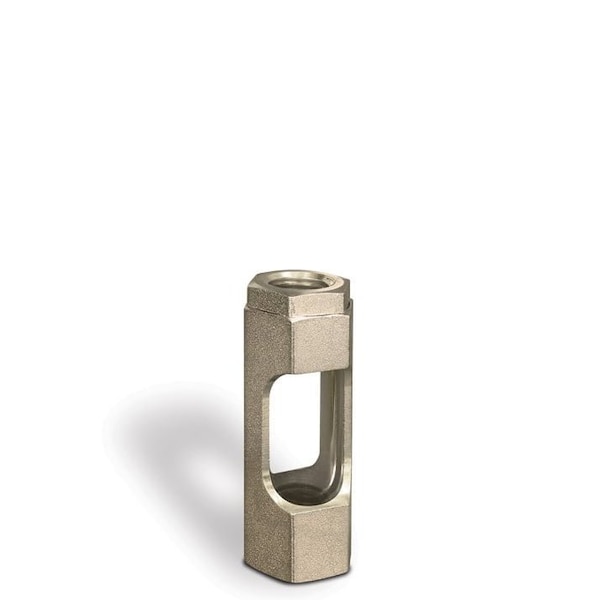

Item # A715-2, Window Flow Sight for Full Flow, 7/16 Port, 1/4 Female NPT Inlet, 1/4 Female NPT Outlet, Buna-N SealsWindow Flow Sights for Full Flow are primarily used in low pressure oil lines. The air-tight glass sight allows visual observation of the liquid flow, clarity, and condition. There are no restrictions on the inside of the sight, resulting in the full flow of liquid, equal to the respective pipe size. The unit can be installed in any position horizontally, vertically, or at an angle .The body is plated steel. The glass sight has a pressure tight, solid gasket design with Buna-N seals. The unit tolerates temperatures up to 225° F. The maximum recommended pressure is 125 PSI. The port diameter is 7/16 .The total height is 2 1/4 and the hex size is 13/16 .
