Shop OILSAFE

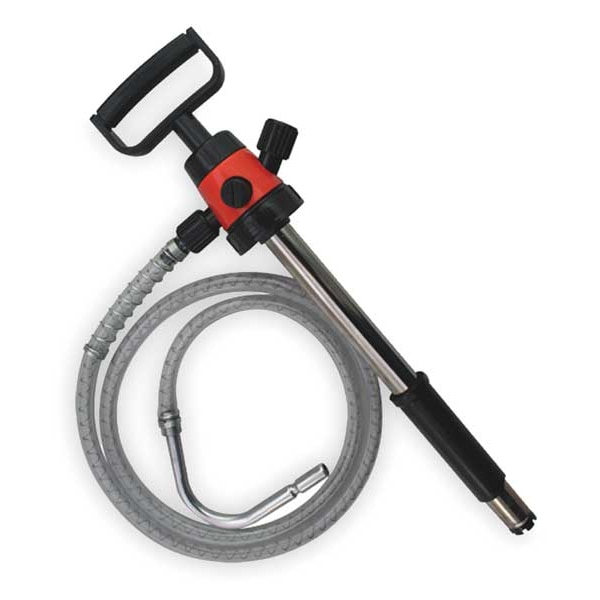

HandPump, Piston, ABS/SS, 12oz/stroke

  • Mfr # 102306

  • Zoro # G2594365

product price:
$
181.99
/ea
Free Shipping & Returns

Key Features

Type
Hand Held with 0.5 in outlet
For Use With
100200, 100201, 100202, 100203, 100204, 100205, 100206, 100207, 100208, 101003, 101005, 101010, 3REG13
Includes
J-Hook, Lid Collar
Container Size
10 L Drum, 3 L Drum, 5 L Drum
Pump Ratio
1:1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
102306
Zoro #
G2594365
UPC #
-
Country of Origin
Multiple
Item
Hand Pump
Type
Hand Held with 0.5 in outlet
For Use With
100200, 100201, 100202, 100203, 100204, 100205, 100206, 100207, 100208, 101003, 101005, 101010, 3REG13
Includes
J-Hook, Lid Collar
Pump Ratio
1:1
Output
1 Liter Every 12 Strokes
Action Type
Piston
For Container Type
Drum
Max. Outlet Pressure
3 psi
Includes Bung Adapter
Yes
Mount Type
Bung
Housing Material - Pumps
ABS, Stainless Steel
Suction Tube Material
Stainless Steel
Max. Flow Rate
12 oz per strokes
Includes Spout
Yes
Wetted Materials
ABS, PVC, Stainless Steel, Viton
Includes Discharge Hose
Yes
Max. Head Pressure
10 psi
Includes Suction Tube
Yes
Max. Fluid Temp.
100 Degrees F
Metered
No
Nozzle Material
Stainless Steel
For Media Type
AntiFreeze, DEF, Ethylene Glycol, Water
Includes Nozzle
Yes
Pump Connection OD
1 in
Adapter Connection Type
NPT
Spout Material
Aluminum
Nozzle Operation
Manual
Max. Viscosity
686 SUS
Compatible Chemicals
Oil
Agency Compliance
ISO 680
Power Source
Manual
Discharge Connection Type
Hose Barb
Maximum Fluid Temperature
100 Degrees F
Hose Cover Material
polypropylene
Seal Material
Viton
Maximum Viscosity
680 SUS
Hose Tube Material
PVC
Static Protection
No Grounding Line Included
Housing Material
ABS/Stainless Steel
Pump Technology
Piston
Wetted Material
Stainless Steel
Maximum Head
5 ft
Piston Material
Stainless Steel
Container Cover Type Included
No Cover Included
Meter Type Included
No Meter Included
Maximum Head Pressure
10 psi
Adapter Material
Polypropylene
Adapter Connection Standard
NPT
Housing Finish
Zinc Plated
Maximum Flow Rate
12 oz per stroke
Maximum Outlet Pressure
3 psi
Standards
ISO 680
Chemical Compatibility
Oil
Power Source - TS Only
Manual
Power Source - old
Manual

Description

Hand Pump, Max. Outlet Pressure 3 psi, Pump Connection OD 1 in, Metered No, Hose Length 5 ft, Includes Discharge Hose Yes, Piston Material Stainless Steel, Housing Finish Zinc Plated, Seal Material Viton, For Use With 100200, 100201, 100202, 100203, 100204, 100205, 100206, 100207, 100208, 101003, 101005, 101010, 3REG13, Adapter Connection Type NPT, Discharge Connection Type Hose Barb, For Container Type Drum, Hose Cover Material polypropylene, Includes Bung Adapter Yes, Includes Nozzle Yes
