Shop OILSAFE

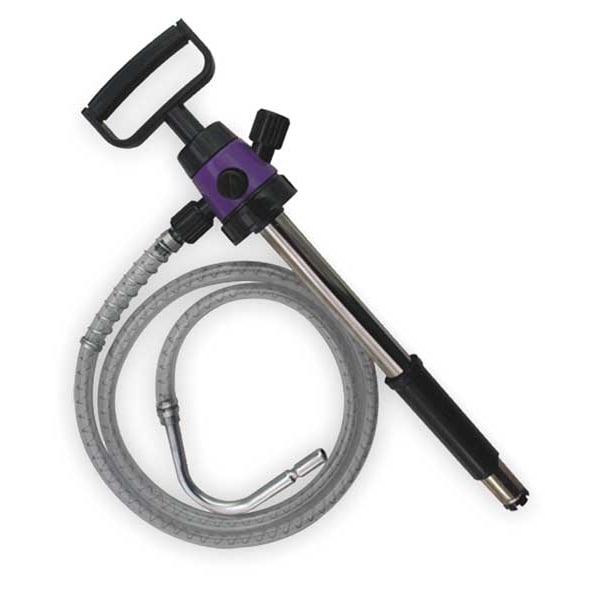

HandPump, Piston, ABS/SS, 12oz/stroke

  • Mfr # 102307

  • Zoro # G2562427

product price:  $184.99
/ea
Free Shipping & Returns

Key Features

Type
Hand Held with 0.5 in outlet
For Use With
100200, 100201, 100202, 100203, 100204, 100205, 100206, 100207, 100208, 101003, 101005, 101010, 3REG14
Includes
J-Hook, Lid Collar
Pump Ratio
1:1
Container Size
10 L Drum, 3 L Drum, 5 L Drum
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
102307
Zoro #
G2562427
UPC #
-
Country of Origin
Multiple

Dimensions

Container Size
10 L Drum, 3 L Drum, 5 L Drum
Hose Length
5 ft
Hose Inside Dia.
1/2 in
Suction Tube Length
5 ft
Bung Connection Dia.
2 1/5 in
Hose Outside Dia.
3/8 in
For Container Size
2.64 gal
Suction Tube Length - Maximum
5 ft
Hose Inside Diameter
1/2 in
Adapter Connection Diameter
2 1/5 in
Hose Outside Diameter
7/16 in

Details

Item
Hand Pump
Type
Hand Held with 0.5 in outlet
For Use With
100200, 100201, 100202, 100203, 100204, 100205, 100206, 100207, 100208, 101003, 101005, 101010, 3REG14
Includes
J-Hook, Lid Collar
Pump Ratio
1:1
Output
1 Liter Every 12 Strokes
Includes Suction Tube
Yes
Spout Material
Aluminum
Nozzle Material
Stainless Steel
Includes Bung Adapter
Yes
Max. Flow Rate
12 oz per strokes
Housing Material - Pumps
ABS, Stainless Steel
Includes Nozzle
Yes
Wetted Materials
ABS, PVC, Stainless Steel, Viton
Max. Outlet Pressure
3 psi
Discharge Connection Type
Hose Barb
For Media Type
AntiFreeze, DEF, Ethylene Glycol, Water
For Container Type
Drum
Power Source
Manual
Max. Fluid Temp.
100 Degrees F
Mount Type
Bung
Includes Discharge Hose
Yes
Max. Viscosity
687 SUS
Agency Compliance
ISO 680
Metered
No
Suction Tube Material
Stainless Steel
Pump Connection OD
1 in
Action Type
Piston
Adapter Connection Type
NPT
Compatible Chemicals
Oil
Nozzle Operation
Manual
Max. Head Pressure
10 psi
Includes Spout
Yes
Static Protection
No Grounding Line Included
Container Cover Type Included
No Cover Included
Meter Type Included
No Meter Included
Piston Material
Stainless Steel
Pump Technology
Piston
Maximum Head
5 ft
Housing Finish
Zinc Plated
Maximum Flow Rate
12 oz per stroke
Maximum Head Pressure
10 psi
Wetted Material
Stainless Steel
Housing Material
ABS/Stainless Steel
Maximum Viscosity
680 SUS
Maximum Fluid Temperature
100 Degrees F
Adapter Connection Standard
NPT
Standards
ISO 680
Chemical Compatibility
Oil
Hose Tube Material
PVC
Adapter Material
Polypropylene
Hose Cover Material
polypropylene
Seal Material
Viton
Maximum Outlet Pressure
3 psi

Description

Hand Pump, Max. Outlet Pressure 3 psi, Pump Connection OD 1 in, Metered No, Hose Length 5 ft, Includes Discharge Hose Yes, Piston Material Stainless Steel, Housing Finish Zinc Plated, Seal Material Viton, For Use With 100200, 100201, 100202, 100203, 100204, 100205, 100206, 100207, 100208, 101003, 101005, 101010, 3REG14, Adapter Connection Type NPT, Discharge Connection Type Hose Barb, For Container Type Drum, Hose Cover Material polypropylene, Includes Bung Adapter Yes, Includes Nozzle Yes

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
