Shop OILSAFE

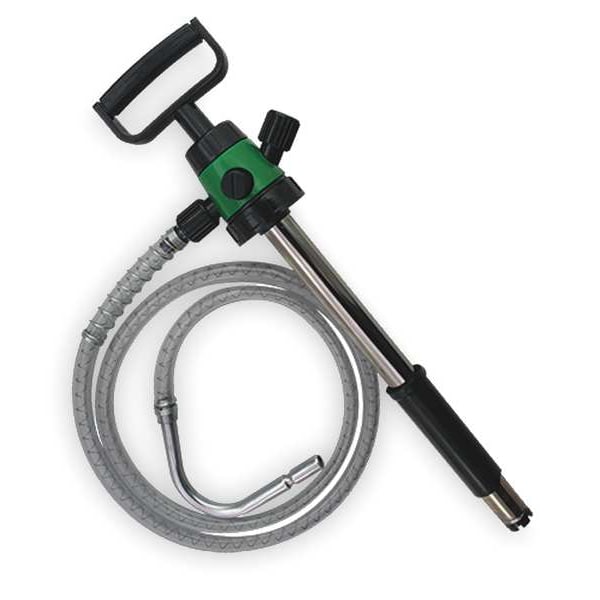

HandPump, Piston, ABS/SS, 12oz/stroke

  • Mfr # 102305

  • Zoro # G2345156

product price:  $188.99
/ea
Free Shipping & Returns

Key Features

Type
Hand Held with 0.5 in outlet
For Use With
100200, 100201, 100202, 100203, 100204, 100205, 100206, 100207, 100208, 101003, 101005, 101010, 3REG12
Includes
J-Hook, Lid Collar
Output
1 Liter Every 12 Strokes
Pump Ratio
1:1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
102305
Zoro #
G2345156
UPC #
-
Country of Origin
Multiple

Dimensions

Container Size
10 L Drum, 3 L Drum, 5 L Drum
Hose Inside Dia.
1/2 in
Suction Tube Length
5 ft
Bung Connection Dia.
2 1/5 in
For Container Size
2.64 gal
Hose Length
5 ft
Hose Outside Dia.
1/2 in
Suction Tube Length - Maximum
5 ft
Adapter Connection Diameter
2 1/5 in
Hose Outside Diameter
7/16 in
Hose Inside Diameter
1/2 in

Details

Item
Hand Pump
Type
Hand Held with 0.5 in outlet
For Use With
100200, 100201, 100202, 100203, 100204, 100205, 100206, 100207, 100208, 101003, 101005, 101010, 3REG12
Includes
J-Hook, Lid Collar
Output
1 Liter Every 12 Strokes
Pump Ratio
1:1
Discharge Connection Type
Hose Barb
Includes Spout
Yes
Compatible Chemicals
Oil
Max. Fluid Temp.
100 Degrees F
Metered
No
Suction Tube Material
Stainless Steel
Action Type
Piston
Includes Bung Adapter
Yes
Includes Discharge Hose
Yes
Nozzle Operation
Manual
For Container Type
Drum
Adapter Connection Type
NPT
Wetted Materials
ABS, PVC, Stainless Steel, Viton
Spout Material
Aluminum
Includes Suction Tube
Yes
Includes Nozzle
Yes
Max. Outlet Pressure
3 psi
Agency Compliance
ISO 680
For Media Type
AntiFreeze, DEF, Ethylene Glycol, Water
Max. Viscosity
685 SUS
Max. Head Pressure
10 psi
Housing Material - Pumps
ABS, Stainless Steel
Pump Connection OD
1 in
Nozzle Material
Stainless Steel
Max. Flow Rate
12 oz per strokes
Power Source
Manual
Mount Type
Bung
Maximum Viscosity
680 SUS
Housing Finish
Zinc Plated
Maximum Flow Rate
12 oz per stroke
Adapter Connection Standard
NPT
Meter Type Included
No Meter Included
Piston Material
Stainless Steel
Maximum Head
5 ft
Container Cover Type Included
No Cover Included
Adapter Material
Polypropylene
Hose Cover Material
polypropylene
Chemical Compatibility
Oil
Maximum Fluid Temperature
100 Degrees F
Seal Material
Viton
Hose Tube Material
PVC
Maximum Head Pressure
10 psi
Pump Technology
Piston
Housing Material
ABS/Stainless Steel
Static Protection
No Grounding Line Included
Maximum Outlet Pressure
3 psi
Standards
ISO 680
Wetted Material
Stainless Steel
Power Source - TS Only
Manual

Description

Hand Pump, Max. Outlet Pressure 3 psi, Pump Connection OD 1 in, Metered No, Hose Length 5 ft, Includes Discharge Hose Yes, Piston Material Stainless Steel, Housing Finish Zinc Plated, Seal Material Viton, For Use With 100200, 100201, 100202, 100203, 100204, 100205, 100206, 100207, 100208, 101003, 101005, 101010, 3REG12, Adapter Connection Type NPT, Discharge Connection Type Hose Barb, For Container Type Drum, Hose Cover Material polypropylene, Includes Bung Adapter Yes, Includes Nozzle Yes

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
