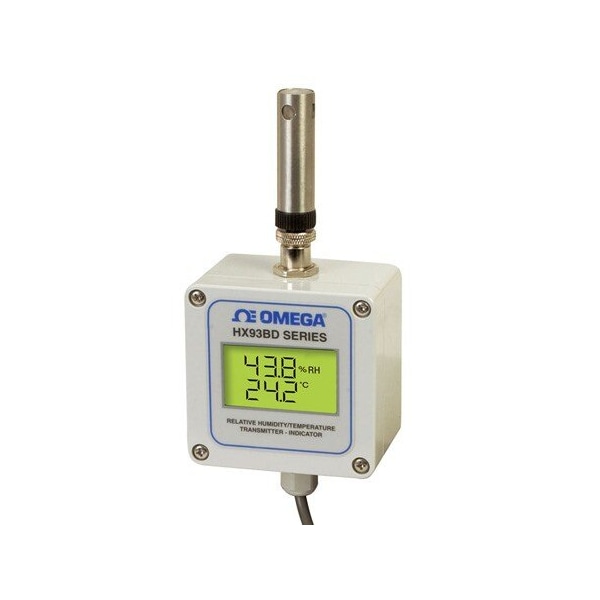

Temperature and Humidity Transmitter: 4 to 20mA, Screw Terminals, -22°F to 167°F, HX93B
Mfr # HX93BC
Zoro # G721908996
product price:
$
715.99
/ea
Free Shipping & Returns
Key Features
Compensated Temperature - Maximum
167 Degrees F
Electrical Connection
Screw Terminals
Features
Field Replaceable Sensor Probe (Except for Duct Mount Model)
Output Power
4 to 20mA
IP Rating
IP54
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- HX93BC
- Zoro #
- G721908996
- UPC #
- -
- Country of Origin
- United States
- Compensated Temperature - Maximum
- 167 Degrees F
- Electrical Connection
- Screw Terminals
- Features
- Field Replaceable Sensor Probe (Except for Duct Mount Model)
- Output Power
- 4 to 20mA
- IP Rating
- IP54
- Display Screen Type
- No Display
- Standards
- CE, RoHS, UKCA
- Enclosure Material
- Polycarbonate
- Temperature Accuracy
- +/-0.6 Degrees C, +/-1.25 Degrees C
- Operating Temperature - Maximum
- 75 Degrees C
- Response Time
- 8 sec
- Item
- Temperature and Humidity Transmitter
- Humidity Measurement - Minimum
- 0 %
- NEMA Enclosure Rating
- 13
- Operating Temperature - Minimum
- -30 Degrees C
- Compensated Temperature - Minimum
- -22 Degrees F
- Includes
- Duct Mount Kit
- Mounting Style
- Wall Mount
- Series
- HX93B
- Input Voltage
- 9 to 30V DC
- Humidity Measurement - Maximum
- 100 %
- Humidity Accuracy
- +/-2.5% from 20 to 80% RH; +/-3.5% from 5 to 20% and 80 to 95% RH; +/-4% from 0 to 5% and 95 to 100% RH; 0 to 100%
- Process Media Temperature Measurement - Maximum
- 75 Degrees C
- Process Media Temperature Measurement - Minimum
- -30 Degrees C
Description
TEMP/RH XMITTER WALL MNT4-20MA
