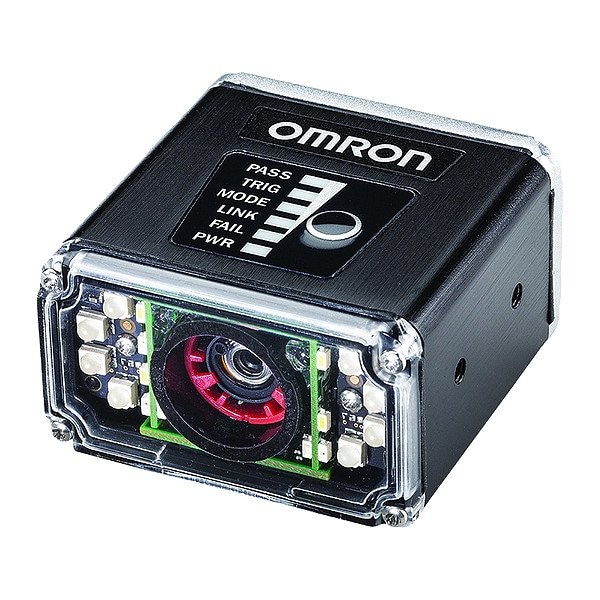

Barcode Reader, Narrow Angle Len, 0.18 A
Mfr # V430F000L12MSRX
Zoro # G409769208
product price:Â
$
5,524.99
/ea
Free Shipping & Returns
Key Features
Overall Depth
44.5 mm
Communication Interface
Ethernet TCP/IP, Ethernet/IP, PROFINET, RS-232C
Number of Digital Outputs
3
Features
Autofocus to Read Codes at Different Distances, Liquid Lens for Unlimited Autofocus
Housing Material
Diecast Aluminum
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- V430F000L12MSRX
- Zoro #
- G409769208
- UPC #
- 4549734576567
- Country of Origin
- United States
Dimensions
- Overall Depth
- 44.5 mm
- Wavelength
- 625 nm
- Overall Width
- 44.5 mm
- Overall Length
- 25.4 mm
- Wire Rope Length
- 25.4 mm
- Length
- 25.4 mm
Details
- Item
- Barcode Reader
- Communication Interface
- Ethernet TCP/IP, Ethernet/IP, PROFINET, RS-232C
- Number of Digital Outputs
- 3
- Features
- Autofocus to Read Codes at Different Distances, Liquid Lens for Unlimited Autofocus
- Housing Material
- Diecast Aluminum
- Protection Features
- IP65, IP67
- Lens Type
- Narrow Angle
- Minimum Ambient Temperature
- 0 Degrees C
- Type of light
- Red Light
- Operating Voltage
- 5 to 30V DC
- Number of Digital Inputs
- 3
- Current Consumption
- 0.18 A
- Image Resolution
- 1280 x 960 px
- Maximum Ambient Temperature
- 45 Degrees C
- Standards
- BIS, BSMI Pending, EAC, EN 55024:2010, EN 55032:2015 + AC:2016, FCC Part 15, Sub Part B (Class B), IEC 62471-1: 2006, KC, RCM, UL60950-1
Description
Barcode Reader, Communication Interface Ethernet TCP/IP, Ethernet/IP, PROFINET, RS-232C, Current Consumption 0.18 A, Features Autofocus to Read Codes at Different Distances, Liquid Lens for Unlimited Autofocus, Housing Material Diecast Aluminum, Image Resolution 1280 x 960 px, Lens Type Narrow Angle, Maximum Ambient Temperature 45 Degrees C, Minimum Ambient Temperature 0 Degrees C, Number of Digital Inputs 3, Number of Digital Outputs 3, Operating Voltage 5 to 30V DC, Overall Depth 44.5 mm
Restrictions
This item has been restricted from sale in the following states:
CA
