Shop OMRON

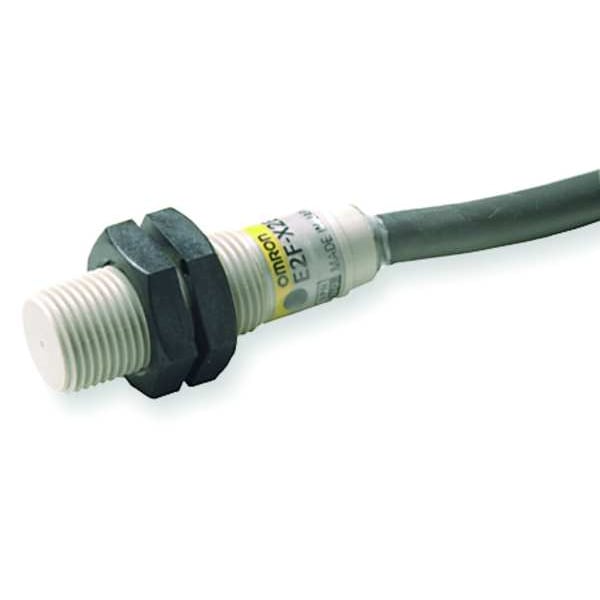

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Polyarylate Resin, 2 m, Bare Wire, 3 Wires, Shielded

  • Mfr # E2F-X5E1

  • Zoro # G1634114

product price:  $153.99
/ea
Free Shipping & Returns

Key Features

Style
Cylindrical, Inductive
Overall Diameter
18 mm
Proximity Sensing Method
Inductive
Body Material
Polyarylate Resin
Proximity Sensor Power Requirement
10 to 30V DC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
E2F-X5E1
Zoro #
G1634114
UPC #
-
Country of Origin
China

Dimensions

Overall Diameter
18 mm
Cable Length
2 m
Length
41 mm
Overall Height
47 mm

Details

Item
Proximity Sensor
Style
Cylindrical, Inductive
Proximity Sensing Method
Inductive
Body Material
Polyarylate Resin
Proximity Sensor Power Requirement
10 to 30V DC
Electrical Connection
Bare Wire
Output Circuit Type
NPN
Output Circuit Number of Wires
3
Sensing Face Shielding
Shielded
Sensing Distance - Maximum
5 mm
AC Voltage Rating
Not Rated
DC Voltage Rating
10-30V DC
Output Circuit Contact Form
NO
Standards
CCC, CE, CSA, cURus
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
600 Hz
IP Rating
IP68
Includes
Instruction Manual
Max. Current Load
200mA
Operating Temp. Range
-13 Degrees to 158 Degrees F
Description/Special Features
LED Indication, Short-Circuit Protection
Operating Temperature - Minimum
-13 Degrees F
Operating Temperature - Maximum
158 Degrees F
Series
E2F
NEMA Enclosure Rating
1, 12, 13, 3, 4, 6
Switching Frequency
600 Hz
Sensing Method
Inductive
Electrical Installation Type
Prewired Cable
Load Current - Maximum
200 mA
Includes Indicator Lights
Indicator Lights Included
Features
Water Resistant

Description

Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 10 to 30V DC, Shielded, Proximity Sensor Operating Frequency 600 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 5 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 1, 12, 13, 3, 4, 6, IP Rating IP68, Case Material Plastic, Length 41 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
