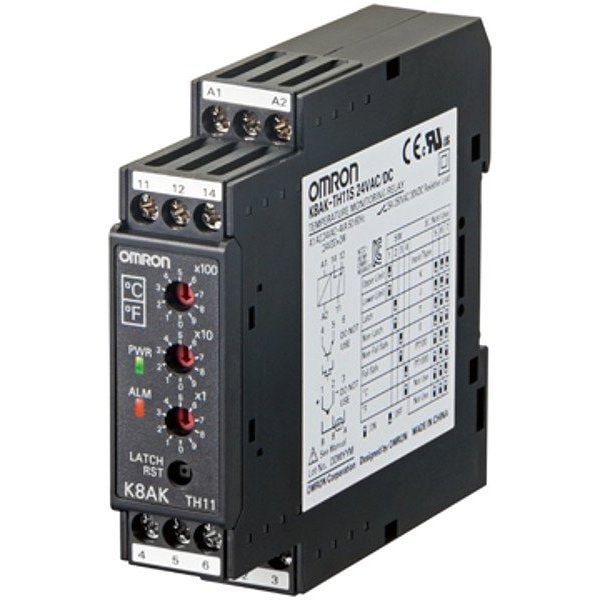

DIN Rail, Temp Monitoring Relay, 5 A, 12 Pins, Screw

  • Mfr # K8AK-TH11S 100-240VAC

  • Zoro # G108664521

product price:
$
295.99
/ea
Free Shipping & Returns

Key Features

Mounting Style
DIN Rail
Electrical Connection
Screw Terminal
Number of Pins
12
Coil Voltage
100 to 240V AC
Current Rating
5 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
K8AK-TH11S 100-240VAC
Zoro #
G108664521
UPC #
4548583402515
Country of Origin
China
Item
Temp Monitoring Relay
Mounting Style
DIN Rail
Electrical Connection
Screw Terminal
Number of Pins
12
Coil Voltage
100 to 240V AC
Current Rating
5 A
Contact Form
SPDT
Contact Rating (AC)
5 A @ 250V
Features
Alarm Output Status Retention, Self-holding Output, Universal-input Support for Thermometer Sensor Input
Status Indicator
LED Indicator
Standards
EN 61326-1 Industrial Electromagnetic Environment, UL 61010-1 (Recognition), Korean Radio Waves Act (Act 10564), CSA C22.2 No.14, UL 61010-1 Installation Environment (Pollution Level 2, Installation Category II)
Seal Leak Minimum Resistance
20,000 ohm
Electrical Operating Durability
100,000
Weight
5.64 oz
Adjustment Method
Rotary Switch
Seal Leak Maximum Resistance
20,000 ohm
Power Consumption
5 VA
Mechanical Operating Durability
10,000,000
Maximum Operating Temperature
131 Degrees F
Relay Function
Over Temperature
Number of Channels
Single Channel
For Use With
Temperature Alarms and Monitoring
Series
K8AK-TH
Housing Material
PC and ABS (UL 94 V-0)
Input Voltage
100 to 240V AC
Minimum Operating Temperature
-4 Degrees F
Frequency
50/60 Hz
Dielectric Strength
2,300V AC between Terminals of Different Charge
Maximum Switching Capacity
1,250 VA

Description

Temp Monitoring Relay, Contact Form SPDT, Current Rating 5 A, Electrical Connection Screw Terminal, Input Voltage 100 to 240V AC, Number of Channels Single Channel, Number of Pins 12, Relay Function Over Temperature, Seal Leak Minimum Resistance 20,000 ohm, Seal Leak Maximum Resistance 20,000 ohm, Status Indicator LED Indicator, Contact Rating (AC) 5 A @ 250V, Mounting Style DIN Rail, Adjustment Method Rotary Switch, Body Depth 3.94 in, Body Height 3.54 in, Body Width 0.89 in
